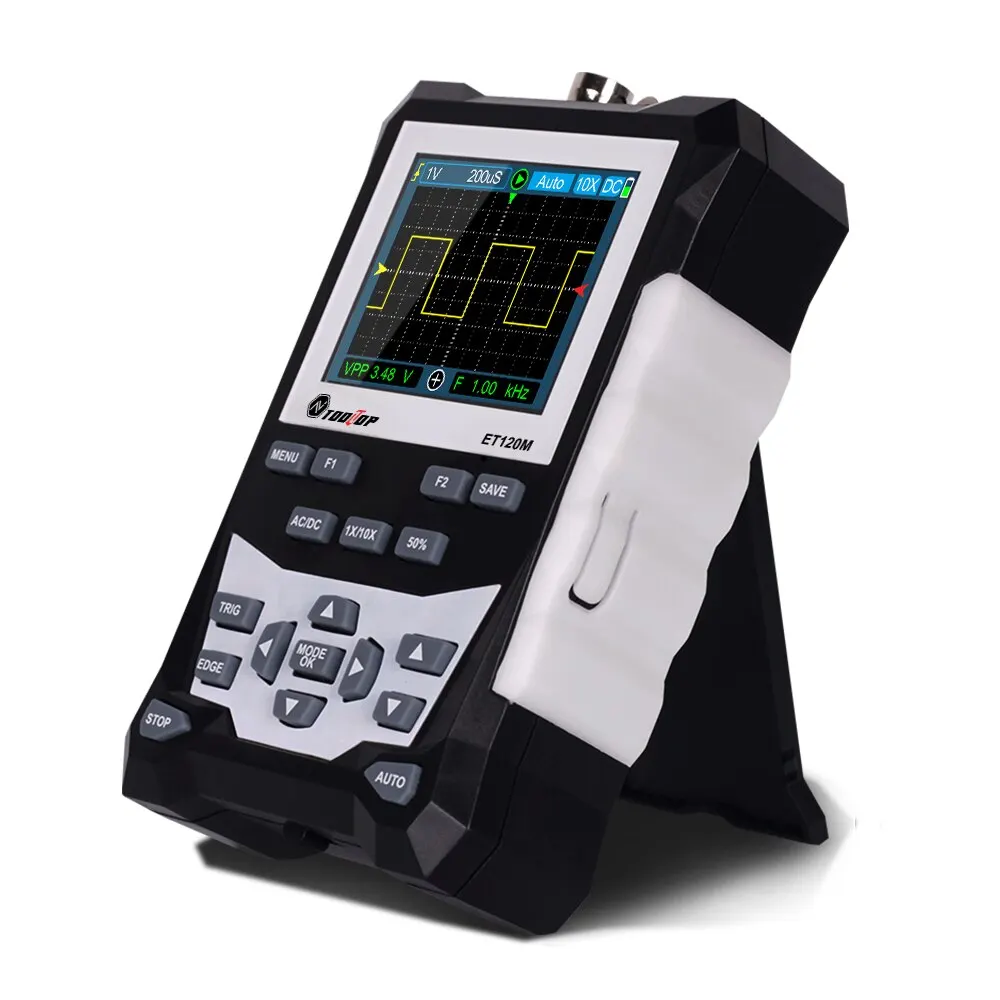

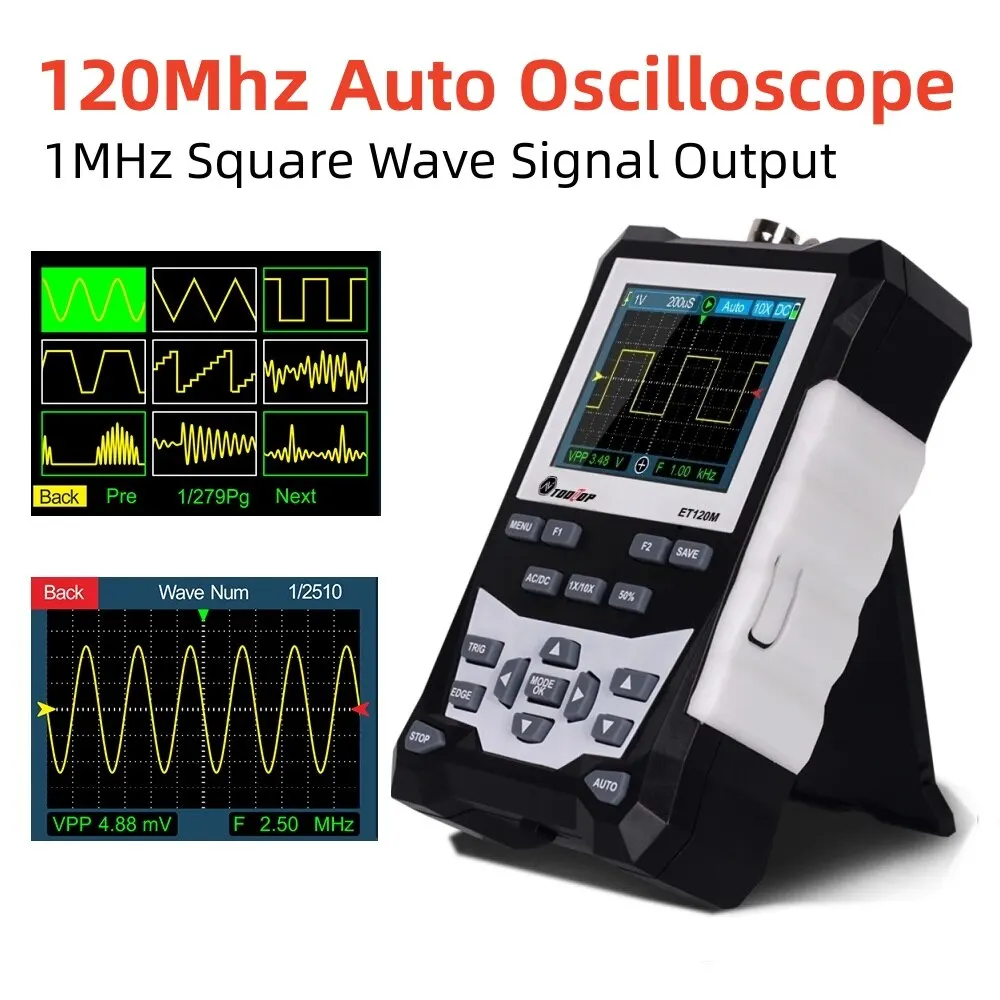

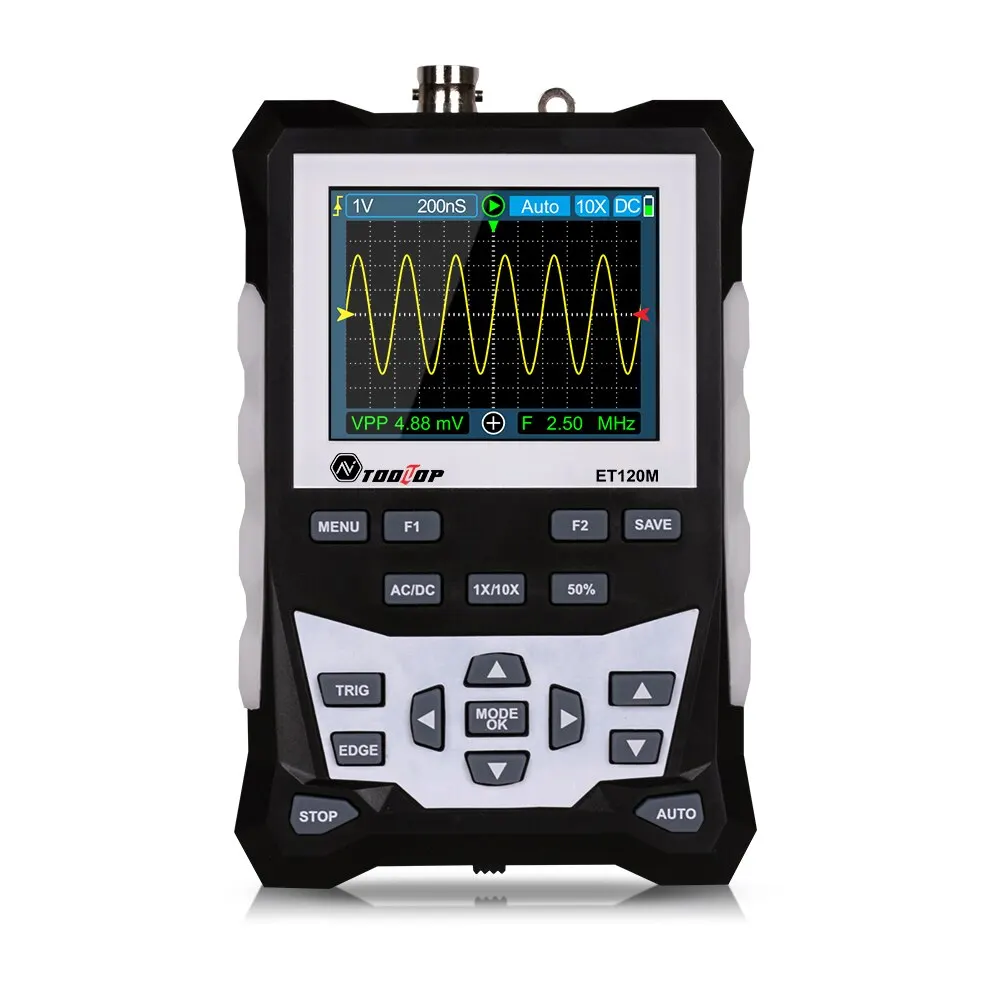

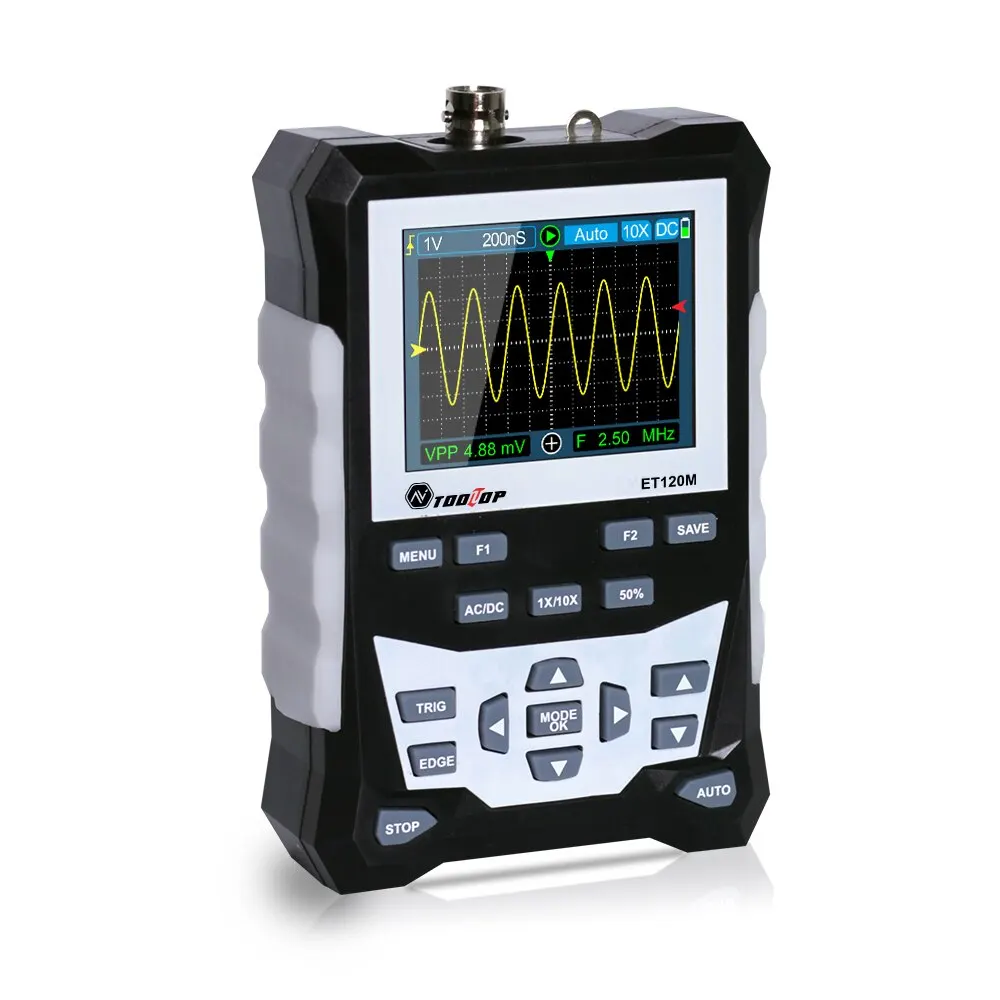

TOOLTOP ET120M Handheld Digital Oscilloscope 1Mhz Square Wave Signal Output Auto Oscilloscope for Electrical Car Repair
Features:
- 120MHz analog bandwidth and 500MS/s sampling rateoscilloscope with 2.4 inches 320 * 240clear color screen

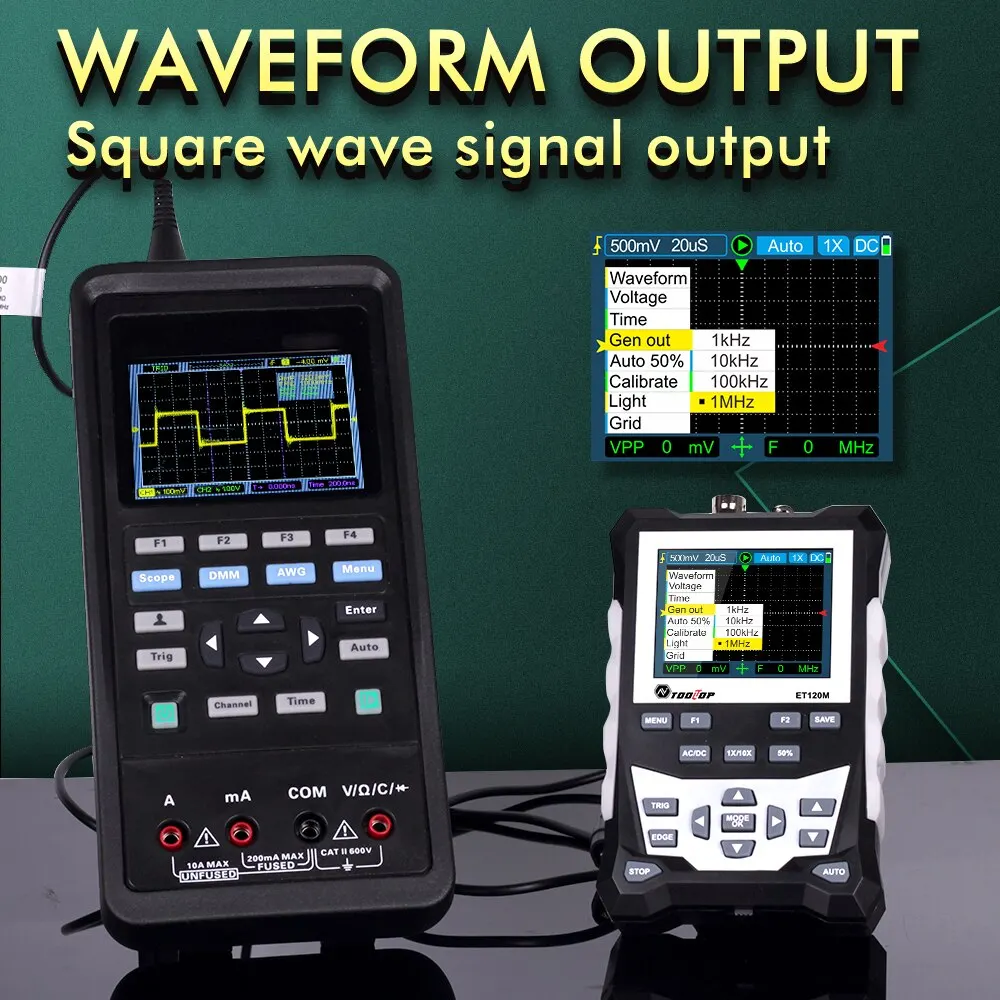

- Square wave signal output:1kHz,10KHz,100KHz,1MHz 4 speeds of square wave signal output
- 12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-.
- Waveform Parameters Adjustable:time base, amplitude,trigger slopeand vertical sensitivity can be setting
- Three scan modes: auto, normal and single. Can store 2500DSOwaveforms, support thumbnail browsing.
- Compact and portable appearance, with silicone protective cover ,strong and durable, built-in rechargeable lithium battery, can be used continuously for 6 hours,suitable for outdoor working
Specification:
Display: 320x240 LCD screen
Display area: 50mm x 40mm
Backlight: White, brightness adjustable
Impedance: x1: 1MΩ / x10: 10MΩ
Battery: 18650 lithium battery
Auto shutdown: No operation for 15 minutes
Storage: 2500 DSO waveforms
Size: 124x80x35mm
Use conditions: 0C~ +40℃; < 75%RH
Storoge conditions: -10C~ +60℃; < 90%RH
Analog bandwidth: 120MHz
Maximum real-time sampling rate:500MSps
Vertical resolution: 8 bits
Vertical accuracy: ±(5% + 0.2div)
Auto zero reference: During DC meosurement
Trigger level: ±3.8div (0. 1div per step)
Trigger position: ± 6div (0. 1div per step)
Cursor function: △V,△t, 1 /△t
Nonlinearity:±1 bits
Coupling method:DC/AC
DivisionVerical: ±3.8 Horizontal:12
Time base range:6ns/div ~ 50s/div
Time base accuracy:±(0.01%+0.1div)
Scan mode:Auto/Single/Normal
Trigger slope:Rising / Falling
Record length:12div

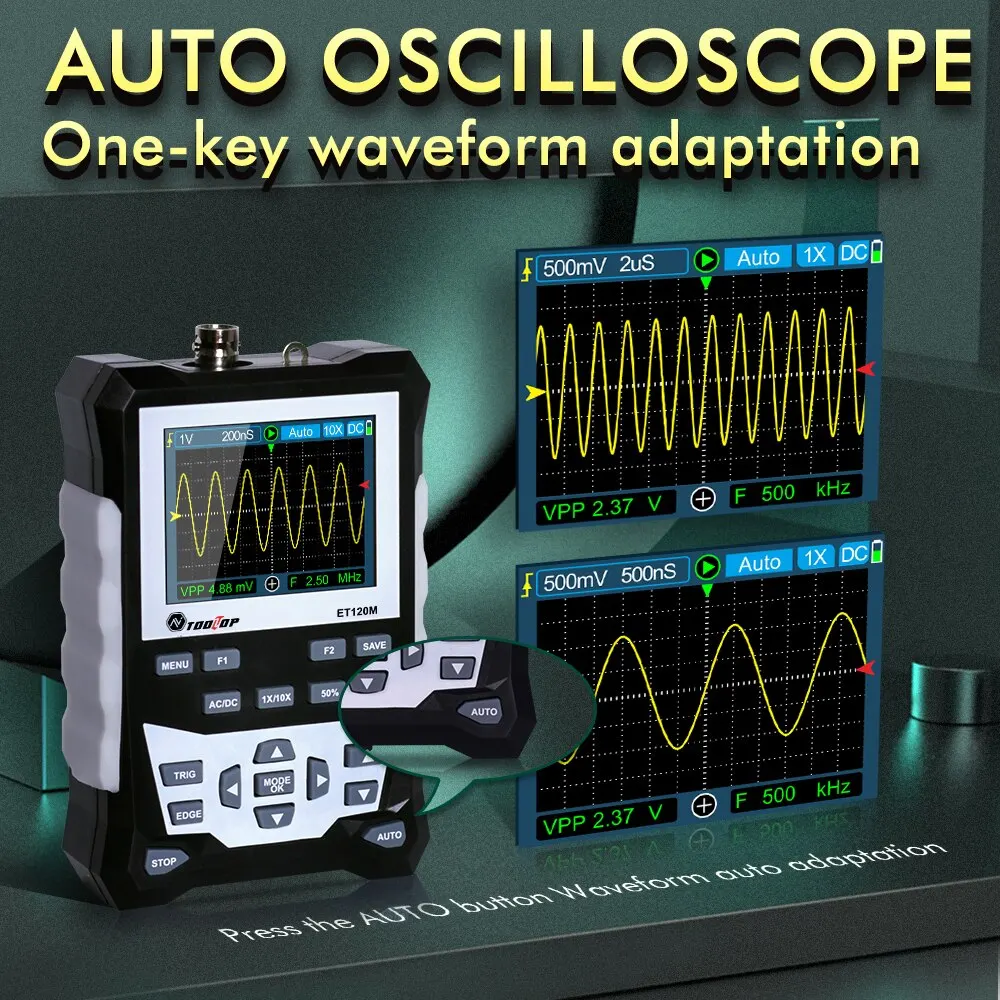

Auto configuration:Automatically set time base and vertical amplitude
Aulomatic measurement function:Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Vertical sensifvity range:x1: 50mV/div ~ 10V/div ; x 10: 500mV/div ~ 100V/div

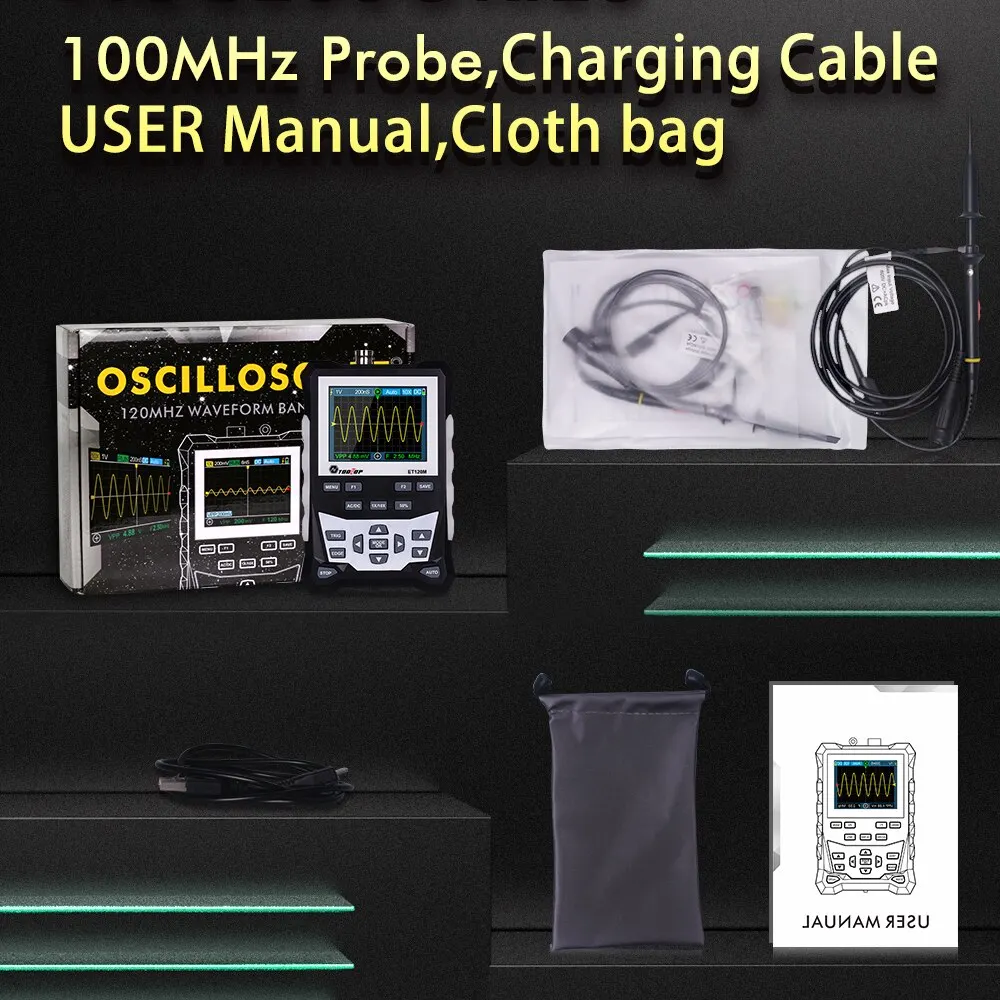

Package list:
1 xOscilloscope
1 xProbe
1 x English Manual
1 x USB Cable
Detail Pictures:
