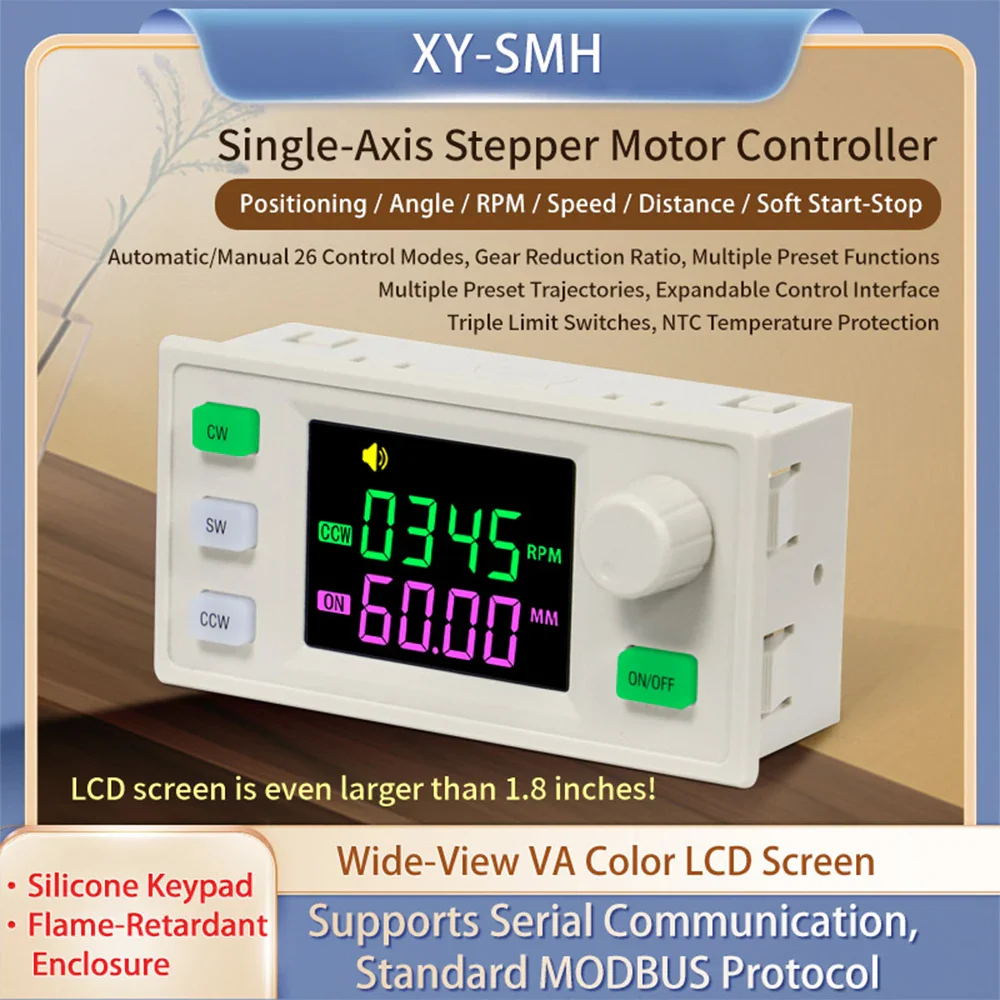

XY-SMH Stepper Speed Motor Controller PLC Forward and Reverse Rotation Pulse Delay Controller Power Supply



 XY-SMH Stepper Speed Motor Controller PLC Forward and Reverse Rotation Pulse Delay Controller Power Supply

Features

1. Rich built-in operating modes, covering various standard motion profiles

2. Power-off save function ensures settings are retained after a power outage, restoring operation upon restart

3. The module supports standalone operation or seamless integration with other systems, meeting diverse application needs

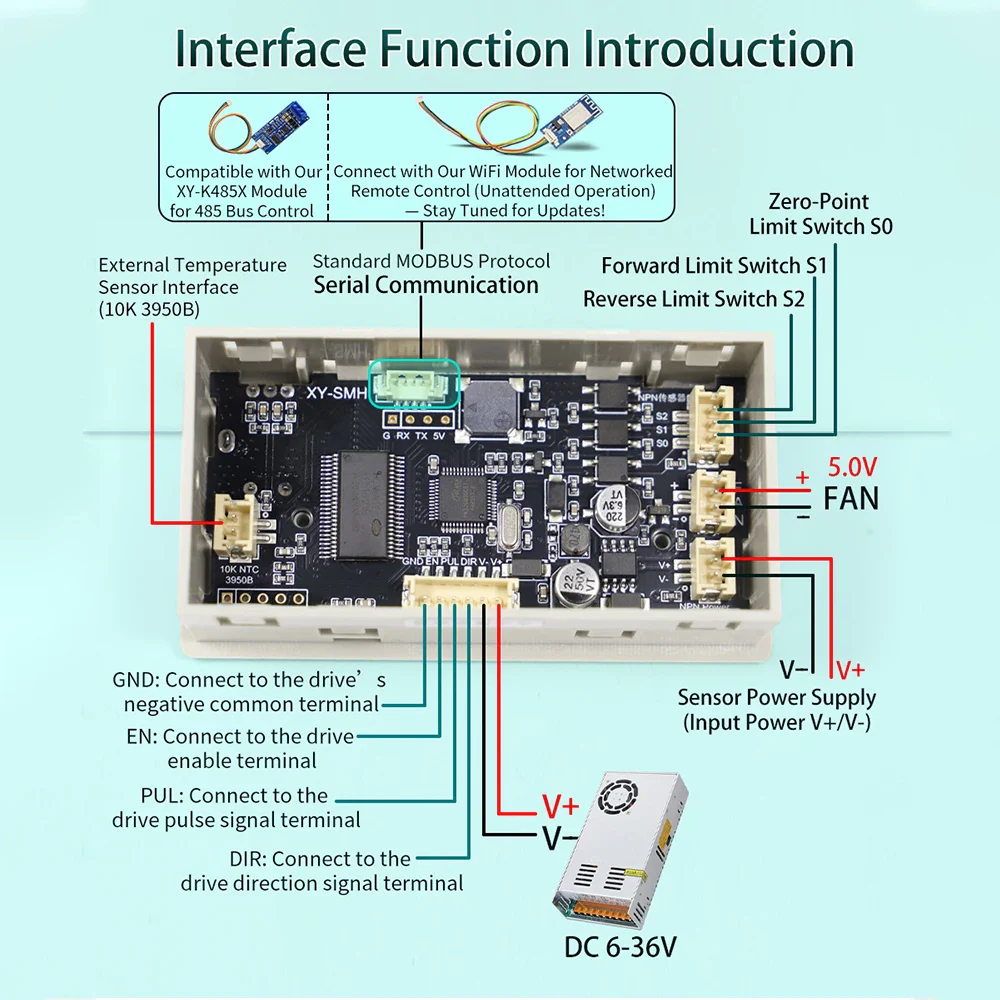

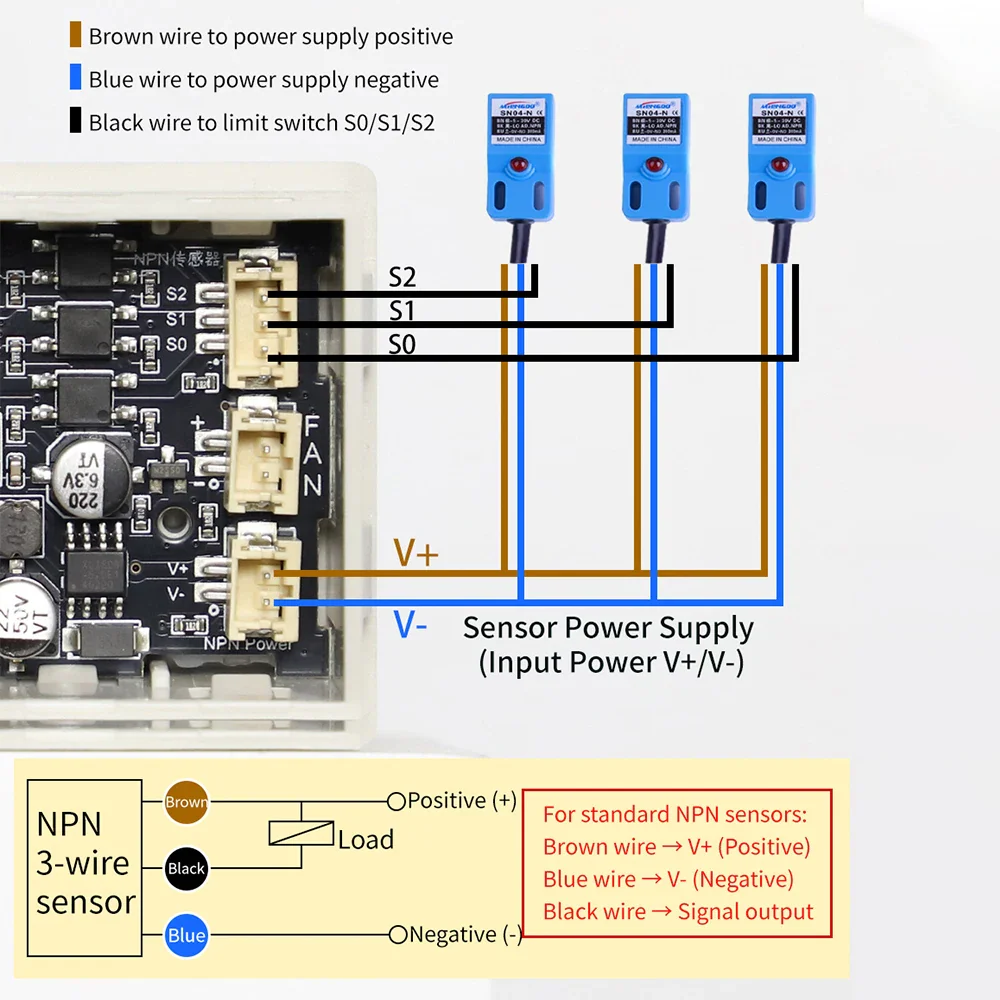

4. Expandable control interfaces facilitate connection to external sensors or control systems

5. Designed specifically for two-phase, four-wire stepper motors, suitable for general industrial control scenarios.

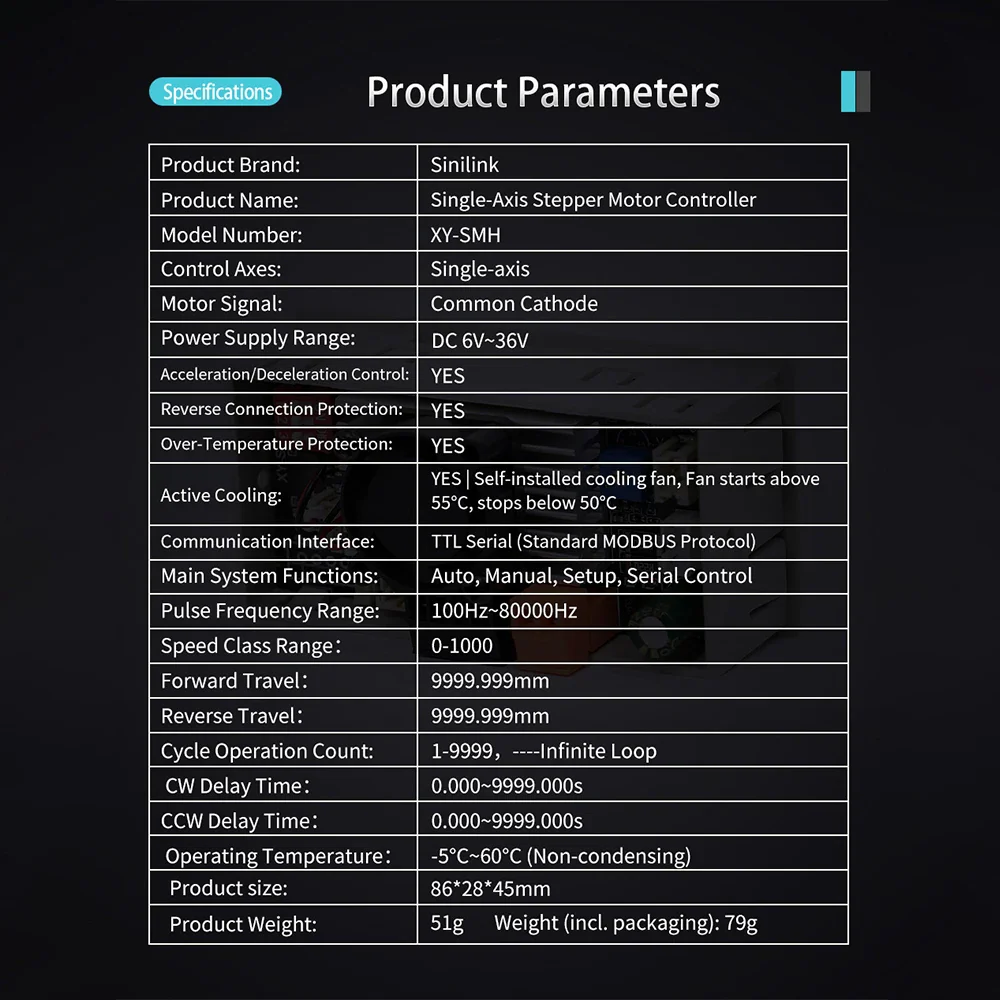

Product Parameters:

Product Name: Single-Axis Stepper Motor Controller

Product Model: XY-SMH

Number of Controlled Axes: Single

Motor Signal: Common-Cathode

Power Supply: DC6-36V Universal

Acceleration/Deceleration Control: Yes

Input Reverse Polarity Protection: Yes

Overtemperature Protection: Yes

Active Cooling: Yes, with optional external fan. Activates when temperature exceeds 55°C and stops when temperature drops below 50°C.

Communication Interface: Serial TTL (standard MODBUS protocol)

System Functions: Automatic, Manual, Configurable, Serial Control

Pulse Frequency Range: 100Hz to 80,000Hz

Speed Level Range: 0-1000Hz



Package Included:

Motor Controller*1

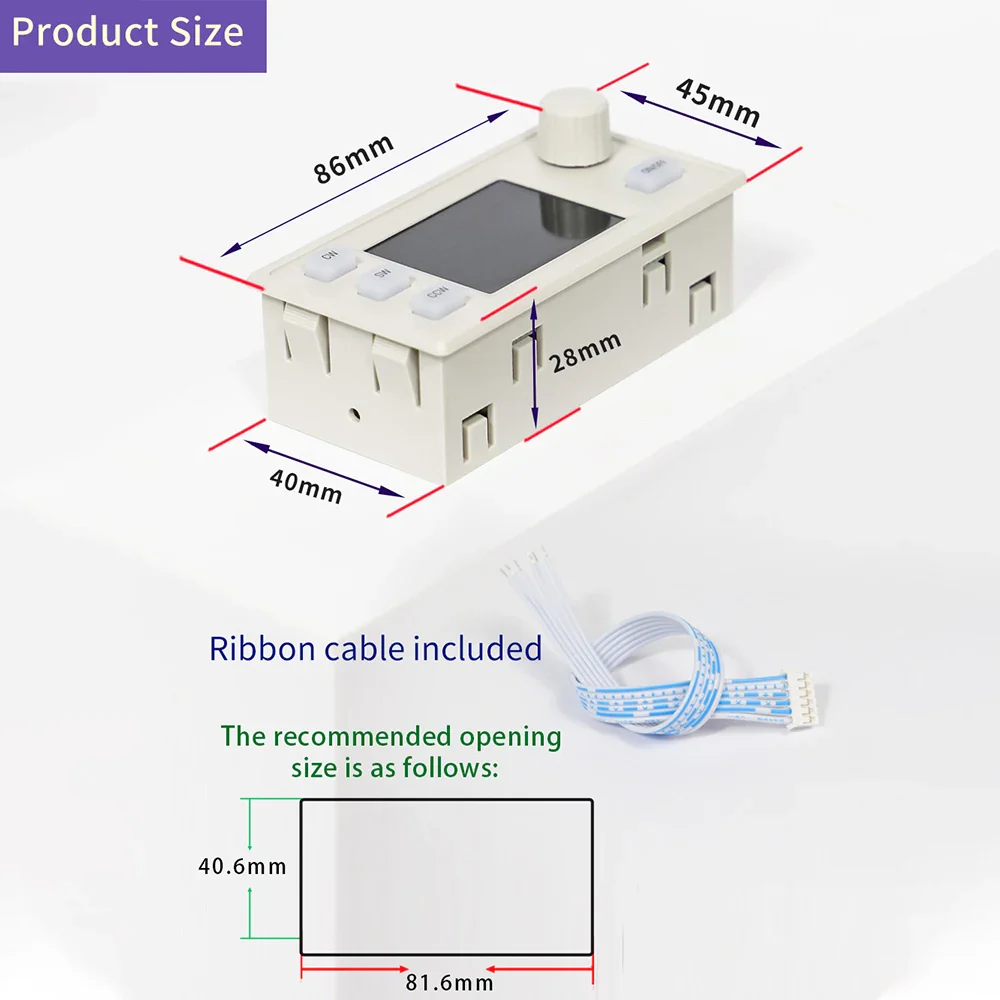

Flex Cable*1
