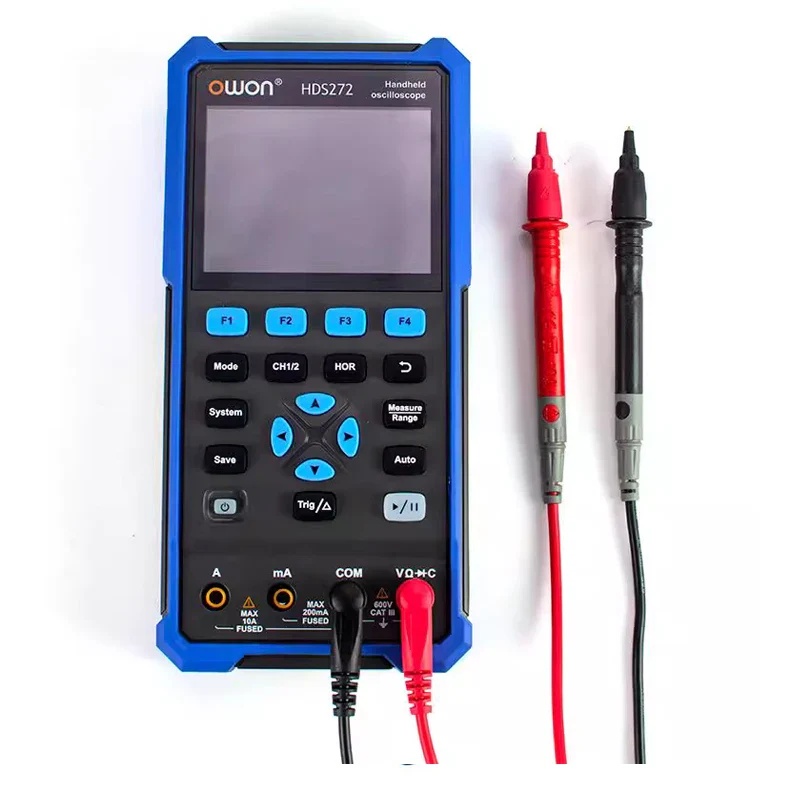

OWON HDS272 Portable Digital Automotive Oscilloscope 2 Channel 70MHz Professional True-RMS Multimeter

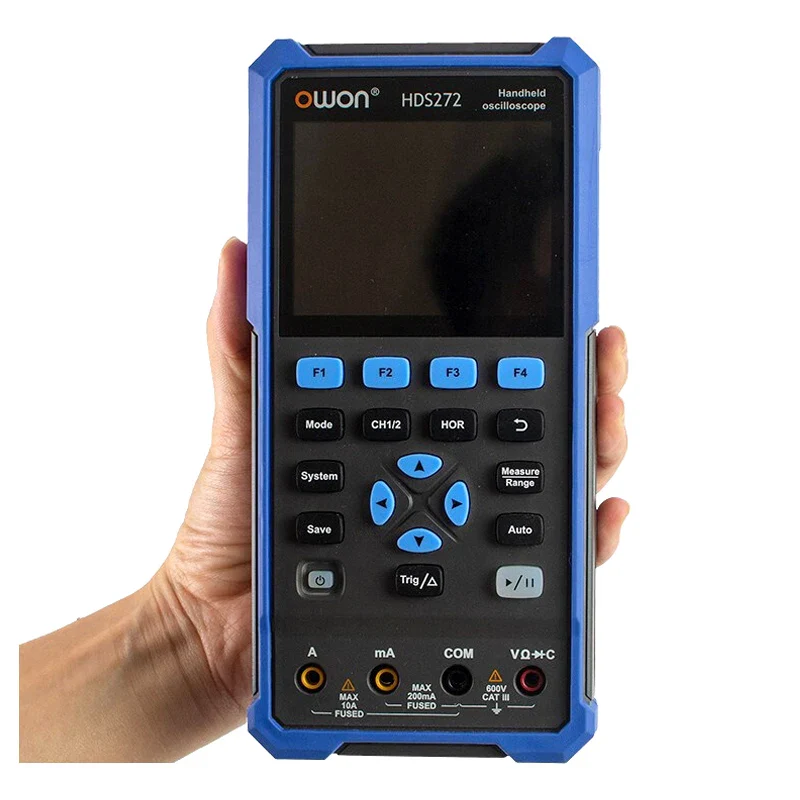

OWON HDS272 Portable Digital Automotive Oscilloscope 2 Channel 70MHz Professional

True-RMS Multimeter

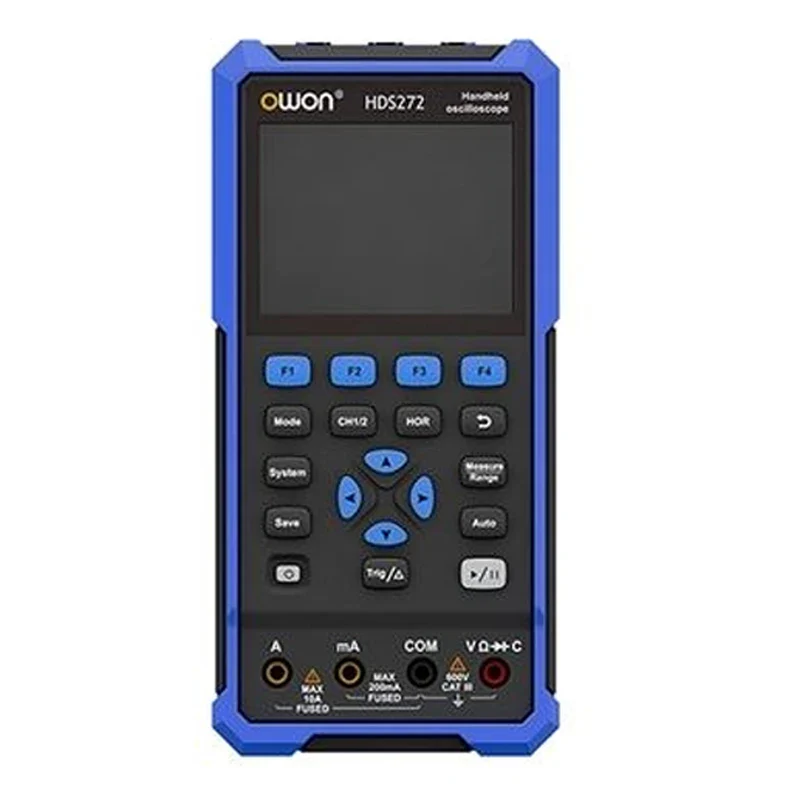

Features:
*[3.5-Inch LCD Screen] 3.5-inch (320*240) high-resolution and high-contrast TFT color LCD screen, clear and delicate display for reading values and observing waveform details.

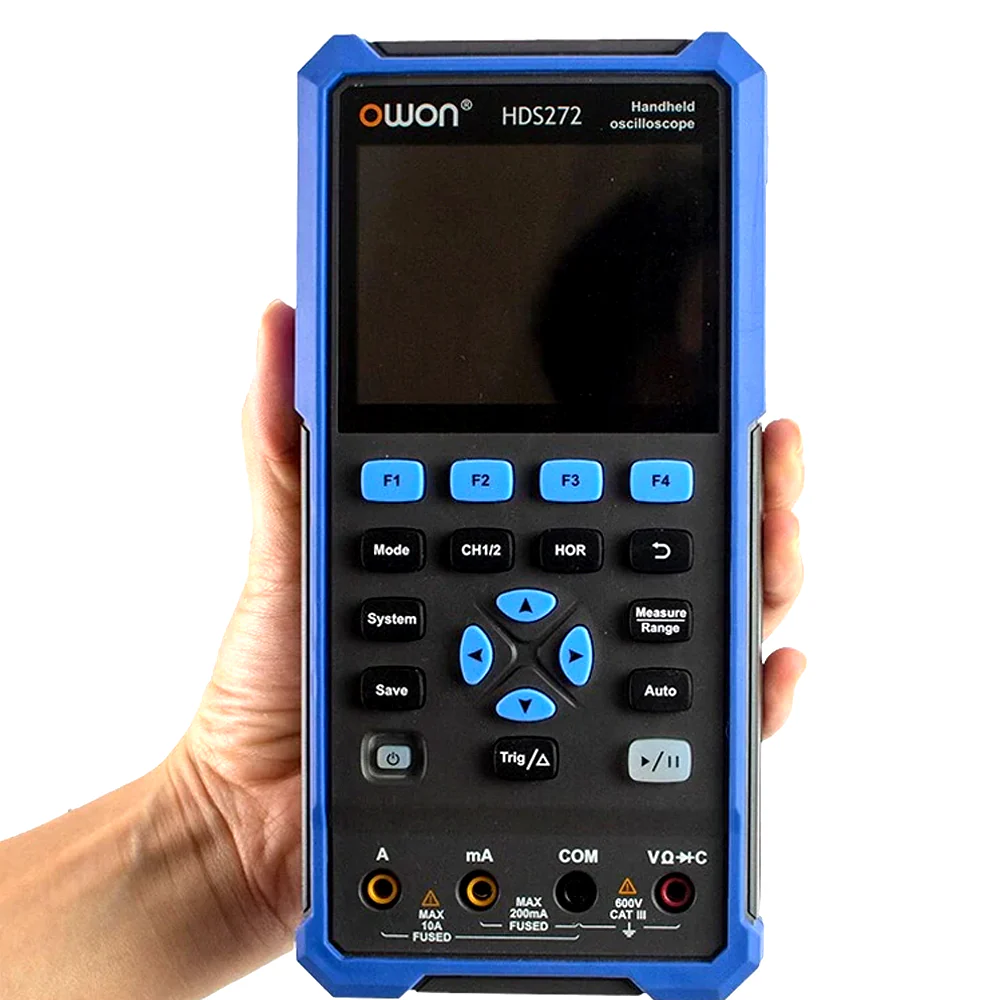

*[2-in-1 Testing Meter] Oscilloscope + Multimeter. One machine in hand, worry-free testing. Suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.

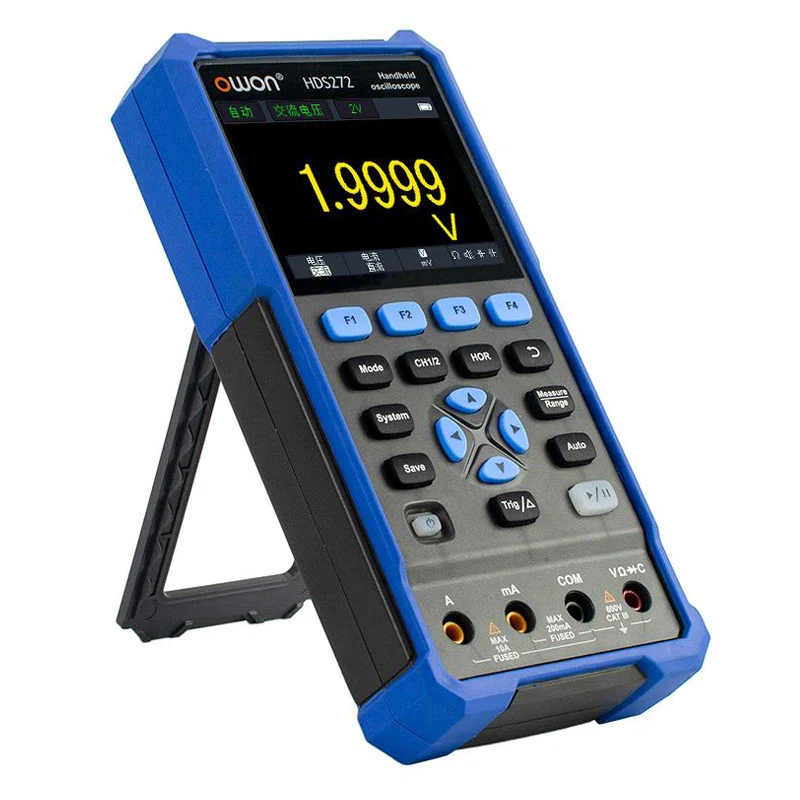

*[20,000 Counts Multimeter with True RMS] High-precision professional multimeter with data hold function, support measuring voltage, current, resistance, diode, capacitance and continuity test.
*[2CH Digital Oscilloscope] 2-channel input & 40MHz bandwidth & 250MSa/s real-time sampling rate & cursor measurement function & XY function & multiple auto measurement functions & one key auto set function, easy to detect and debug.

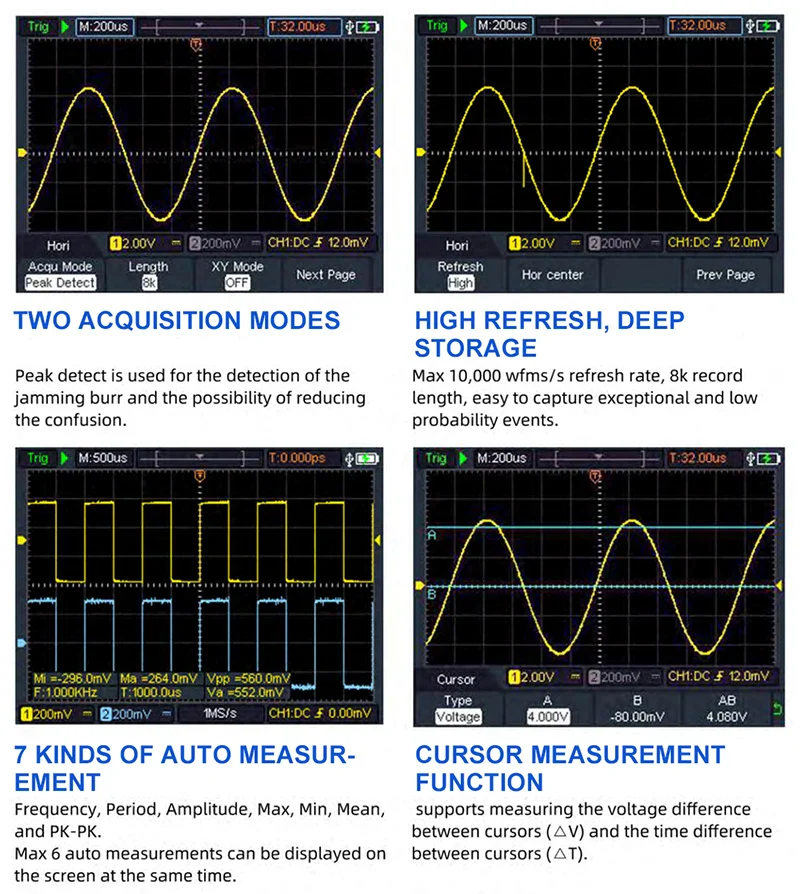

*[Two Acquisition Modes] Peak detect is used for the detection of the jamming burr and the possibility of reducing the confusion.
*[7 Kinds of Auto Measurement] Frequency, Period, Amplitude, Max, Min, Mean and PK-PK. Max 6 auto measurements can be displayed on the screen at the same time.
*[Cursor Measurement Function] Supports measuring the voltage difference between cursors (△V) and the time difference between cursors (△T).
*[High Refresh, Deep Storage] Max. 10,000wfms/s refresh rate, 8k record length, easy to capture exceptional and low probability events.
*[Save Function] Save 4 settings, 4 reference waveforms, 4 waveform images, 4 CSV waveform files. The reference waveform can be displayed on the same screen as the measured waveform, convenient for waveform comparison.
*[2 * 2200mAh 18650 Lithium Battery] Less then 3W power consumption, can work continuously for about 6 hours; equipped with Type-C USB cable for convenient charging and PC connection.



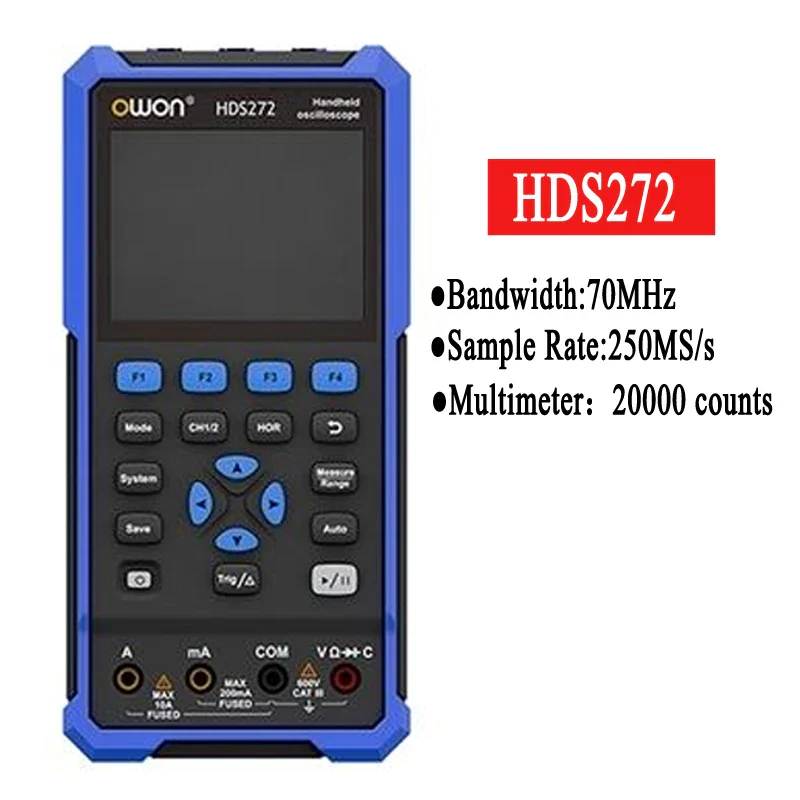

Specifications:

Model	HDS242	HDS272	HDS2102	HDS242S	HDS272S	HDS2102S
Bandwidth	40MHz	70MHz	100MHz	40MHz	70MHz	100MHz
Channels	2-CH Oscilloscope			2-CH Oscilloscope+1-CH Generator
Sample Rate	250MS/s		500MS/s	250MS/s		500MS/s
Acquisition Model	Normal, Peak detect
Record Length	8K
Display	3.5-inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	5ns/div - 1000s/div, step by 1 - 2 - 5		2ns/div - 1000s/div, step by 1 - 2 - 5	5ns/div - 1000s/div, step by 1 - 2 - 5		2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single
Automatic Measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface	USB Type-C
