NOYAFA NF 8509 New Upgrade Network Cable Tester For Multimeter Current Voltage Resistance POE Test NCV AC DC LCD Wire Tracke

NOYAFA NF 8509 New Upgrade Netwok Cable Tester And Multimeter

Function:

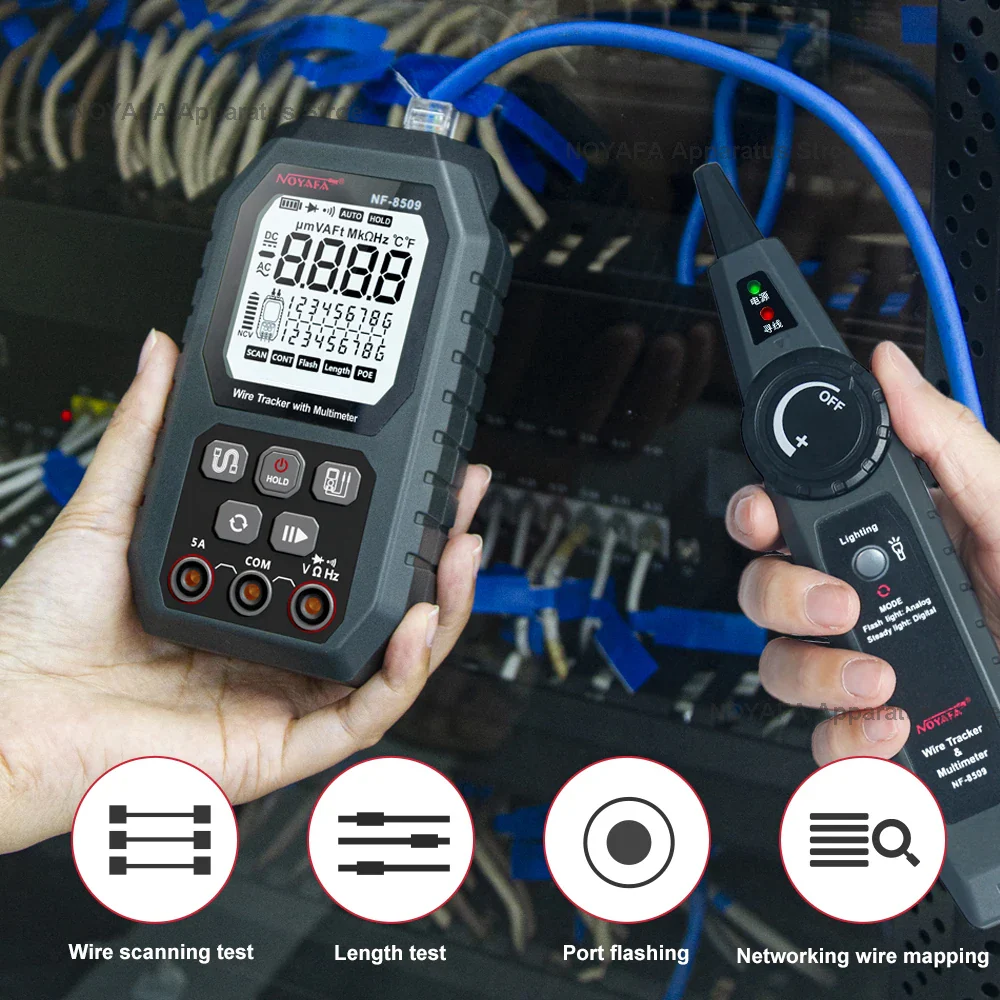

1. Network cable testing functions:Cable length test,wire continuity test,wire scan test,POE Test and prot flash

2. Digital Multimeter Functions:Ac/Dc Voltage Test,Continuity Test,Diode Test,Temperature Test,Ncv Test,Resistance Test,Ac/Dc Current Test

Note:Wire Scan is enabled by default after turn on the device

Product Parameters:

Model:NF-8509

Transmitter Wire mapping test Max.distance of 2.000m

Wire scanning RJ45 600m

Wire length test 5-200m(±3m)

Port flashing test 10M/100M/1,000M

POE4-core/8-core power supply detection

POE voltage detection

Continuity test Detect The connectivity performance of ofwires andvariousconductorsThebuzzer will sound when resistance is below 50Ω

Identify the polarity and forward voltage dropofdiodes(0-3.3V)

NCV function Inductive voltage detector(0-4 levels)

Resistance measurement :600Ω-60MΩ(accuracy:±1.0%+5)

AC/DCvoltage measurement :600mV-610V(DCaccuracy:±0.5%+3 ACaccuracy:+0.5%+3)

measurement:1mA-3ADC(accuracy:±0.8%+3)

Frequency:0-10MHz(accuracy:±1.0%+3)

Power:3.7V/1,500mAlithium battery

Ambient

temperature display √

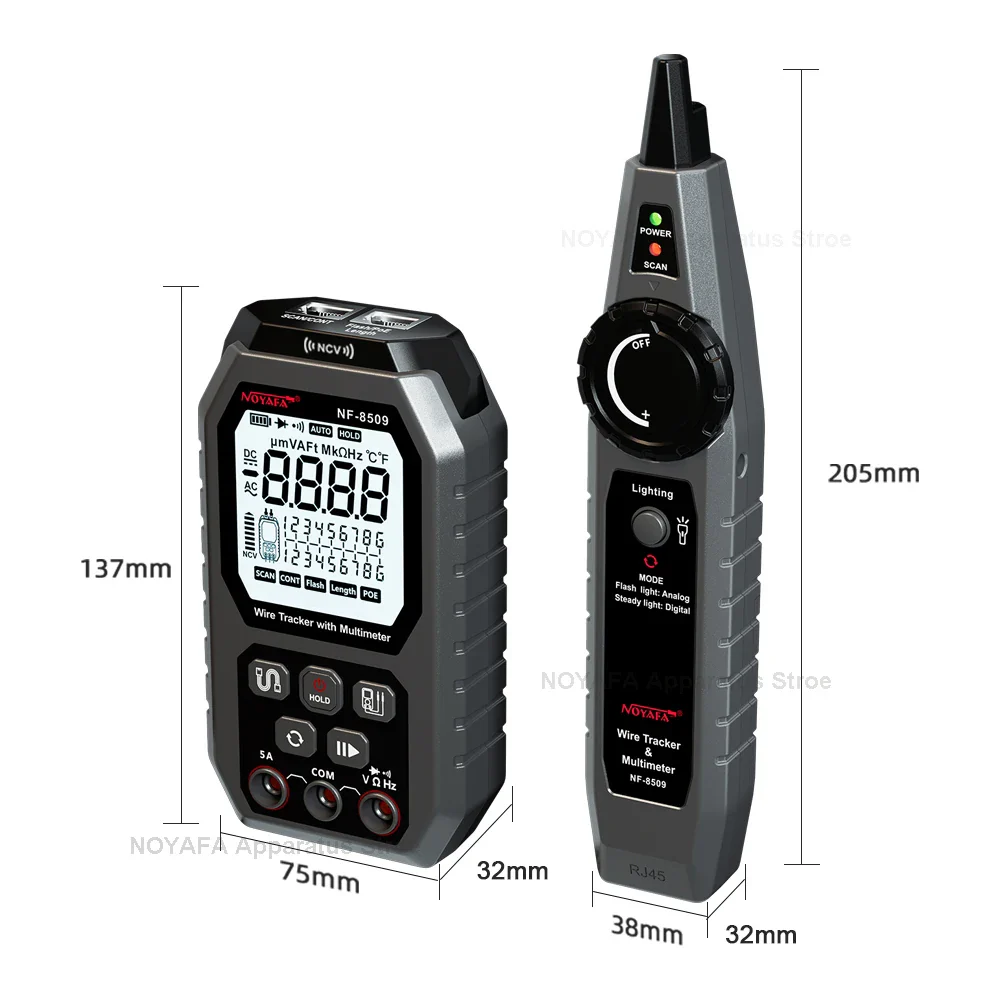

Dimensions 137.5x76x34mm

ReceiverL ED light √

Telephone function √

Power DC 9V(exclusive)

Maximum

working current≦150mA

Dimensions204.9x38x29mm

Package Include:

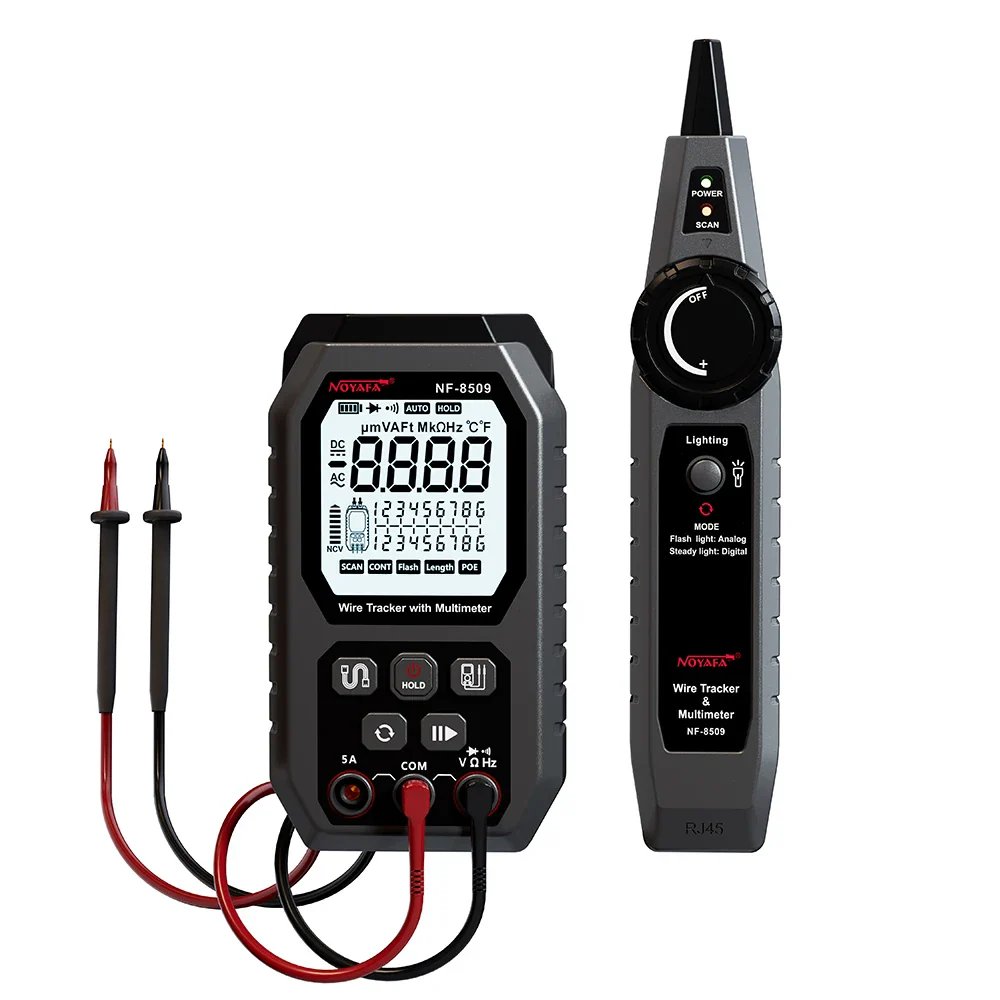

Emitter  1pc

Receiver  1pc

Multimeter pen 2pc

Carry bag   1pc

Type-c USB 1pc

Earphone  1pc

Cable adaptors 1 pc

User manual  1pc
