Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE
Docs & Resource
Introduction and Operation Video of Mesh Node T114 Development Board
Why do we need Maker series products?

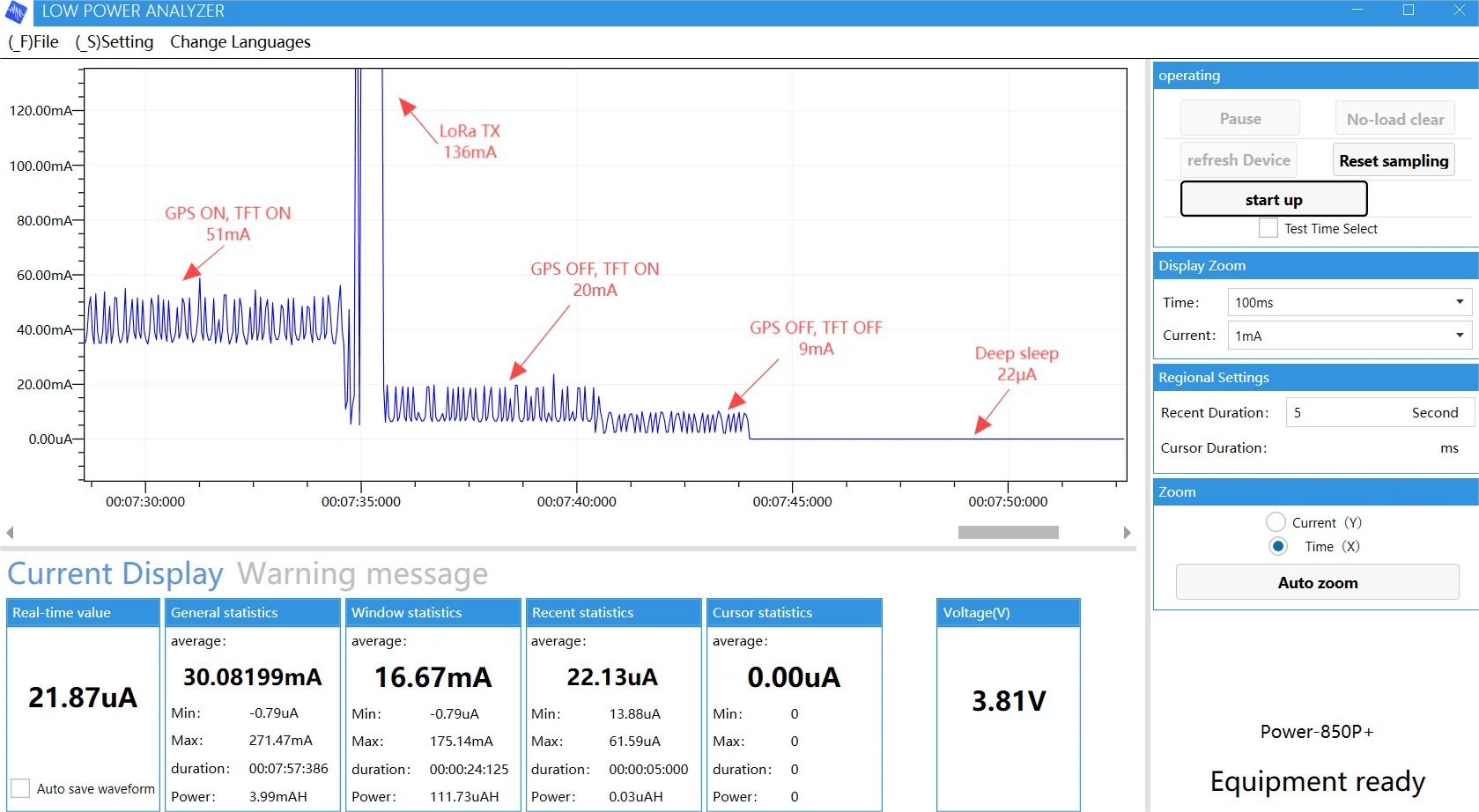

Low Power Chracteristics
Summary

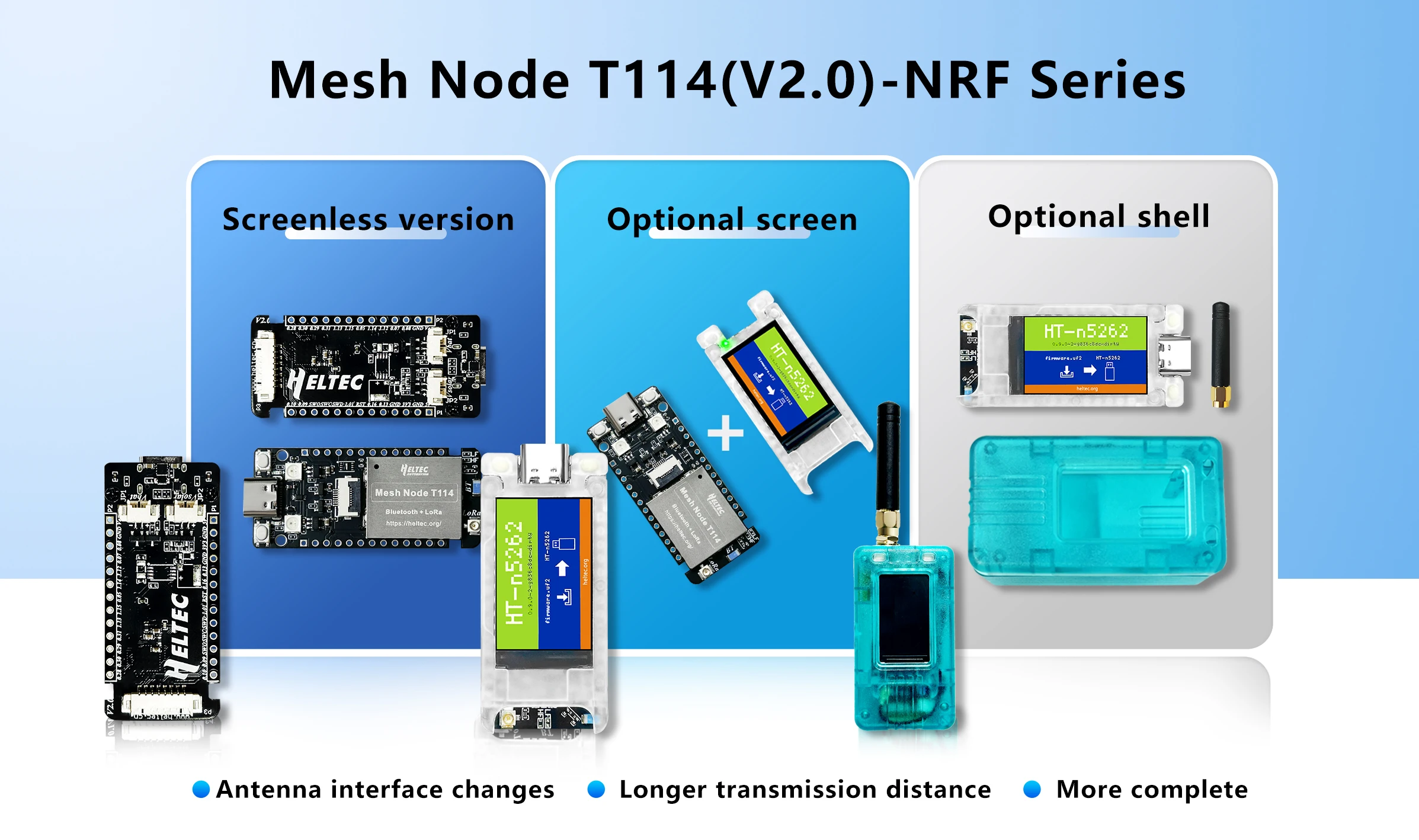

The Mesh Node T114 features a dual-chip combination of nRF52840 and SX1262, simultaneously
supporting both LoRa and Bluetooth communication, with optional GPS and display modules; it achieves
flexible power management via USB, lithium battery, and solar panel interfaces, and exhibits superior

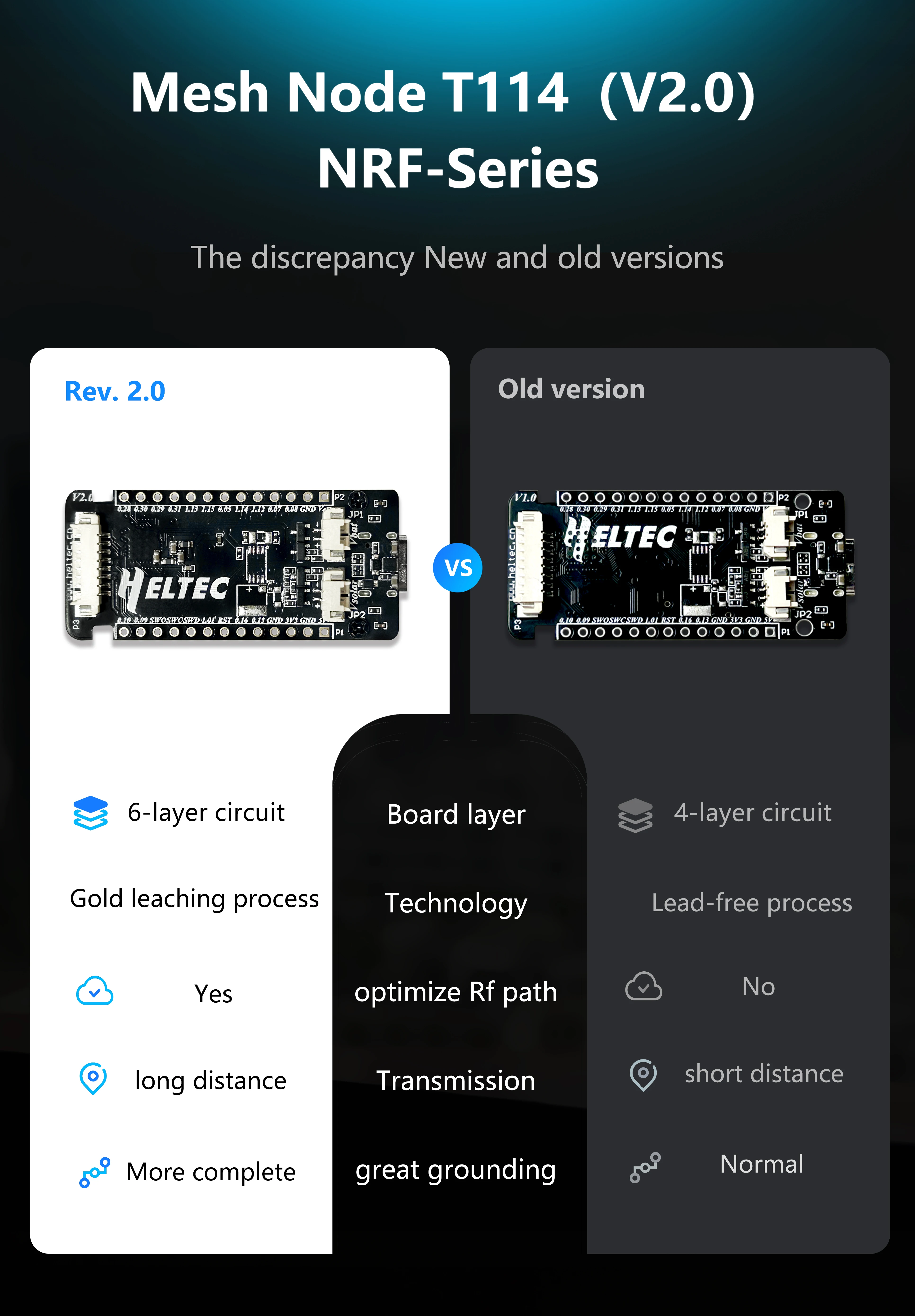

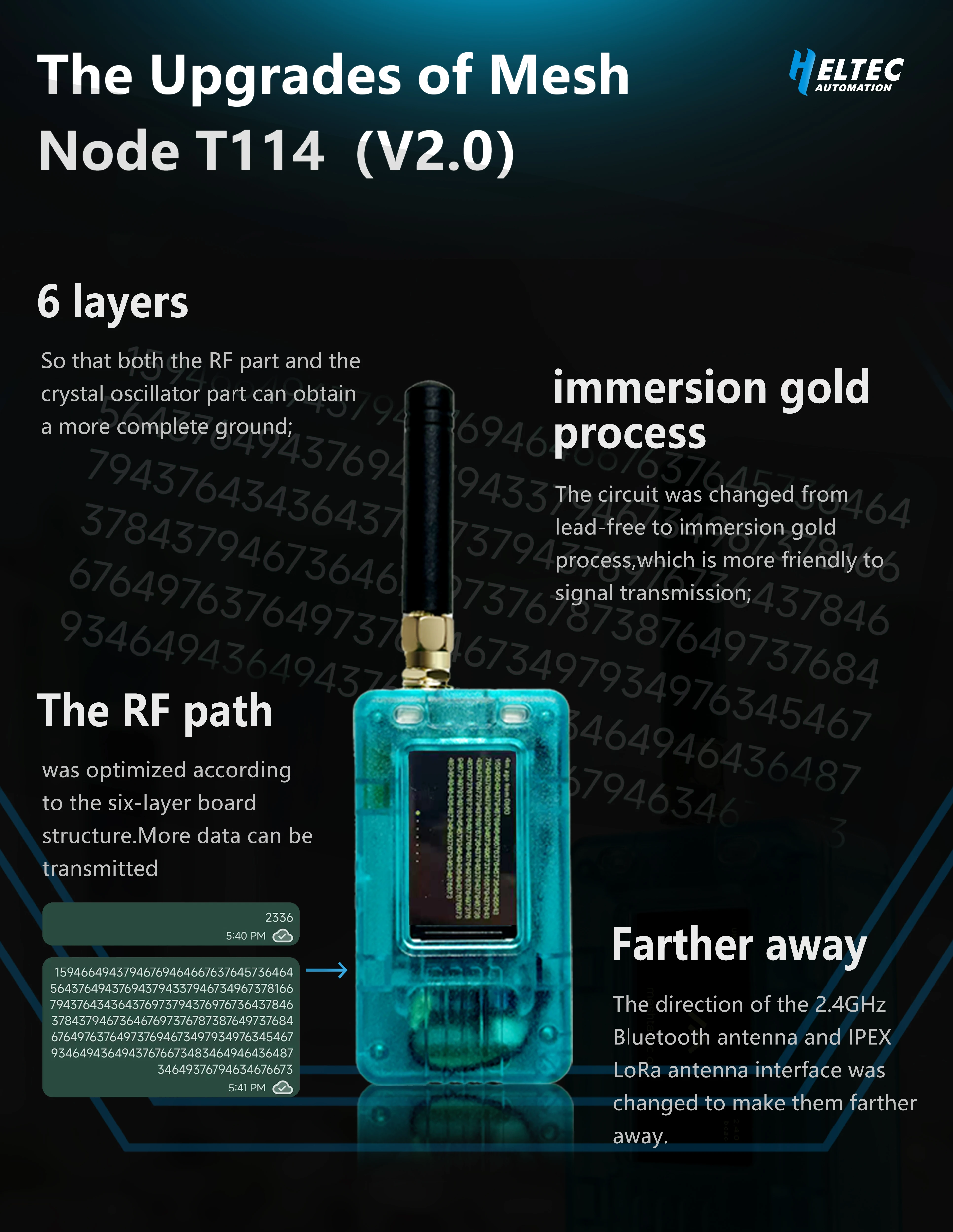

low-power characteristics compared to the Heltec V3; its six-layer PCB architecture and optimized RF
circuit design make it especially suitable and durable for LoRa/LoRaWAN applications such as device
tracking and remote monitoring systems; and finally, the T114 enables development through environment
like Arduino and PlatformIO, offering full compatibility with well-known open-source projects like
Meshtastic and MeshCore

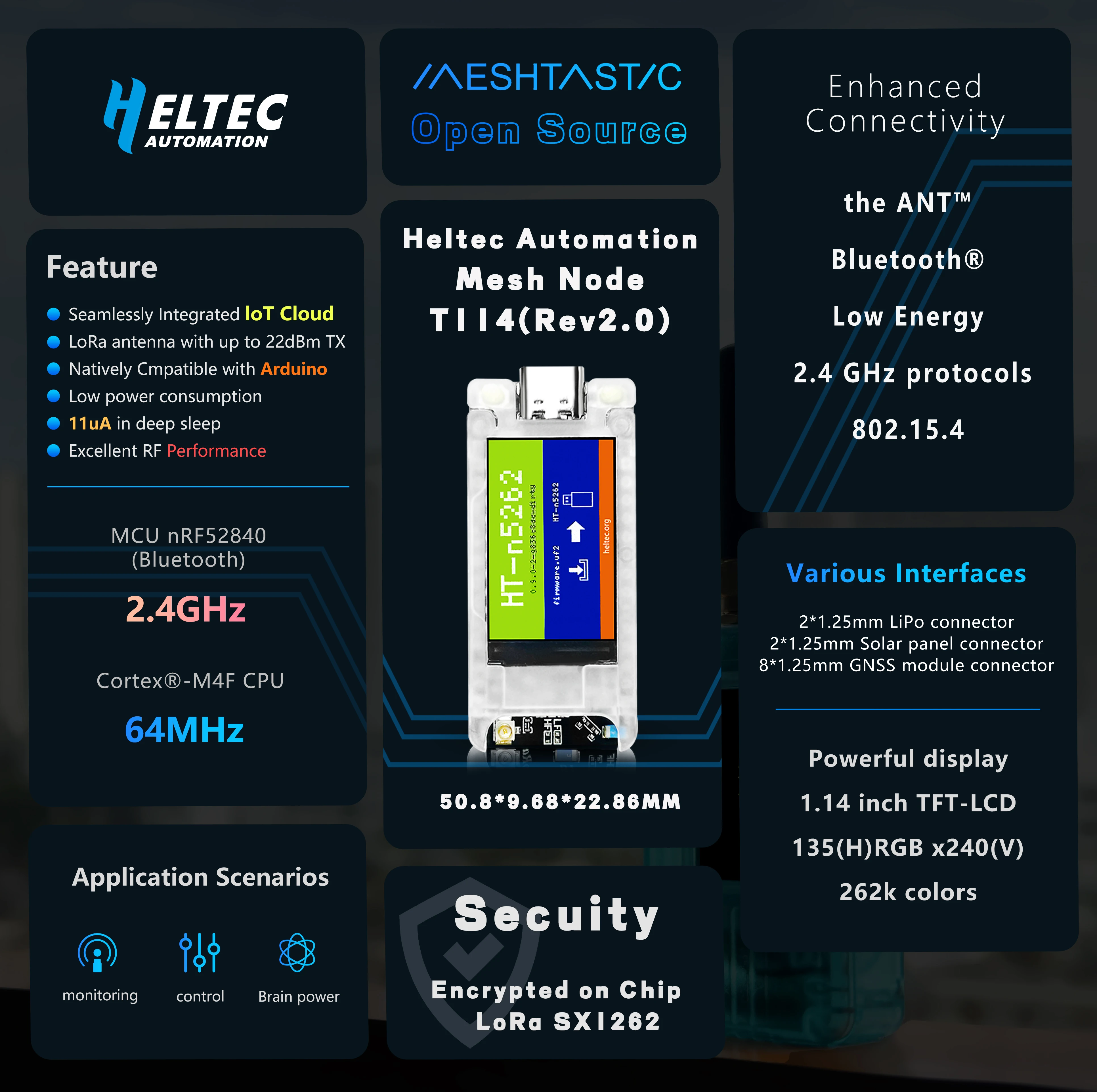

Main Features
-

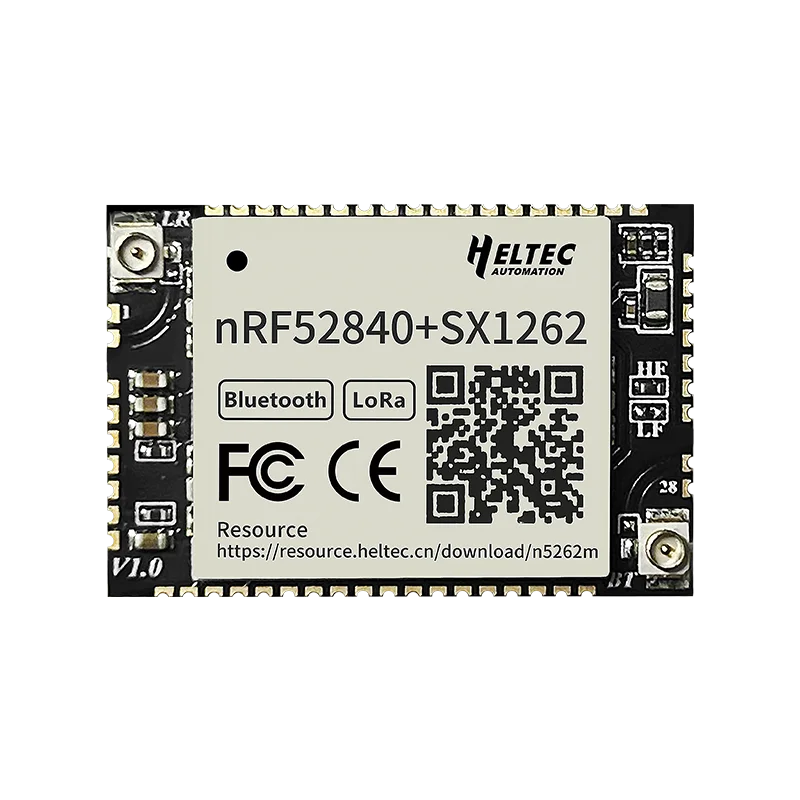

MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
-
Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors.
-
Low power consumption, 11 uA in deep sleep.
-
Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors.
-
Operation condition: -20 ~ 70℃, 90%RH(No condensing).
-
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
-
Compatible with Arduino, we provide development frameworks and libraries.
-

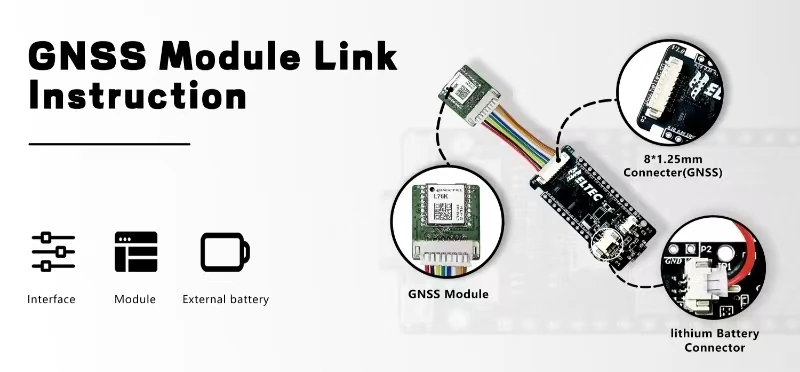

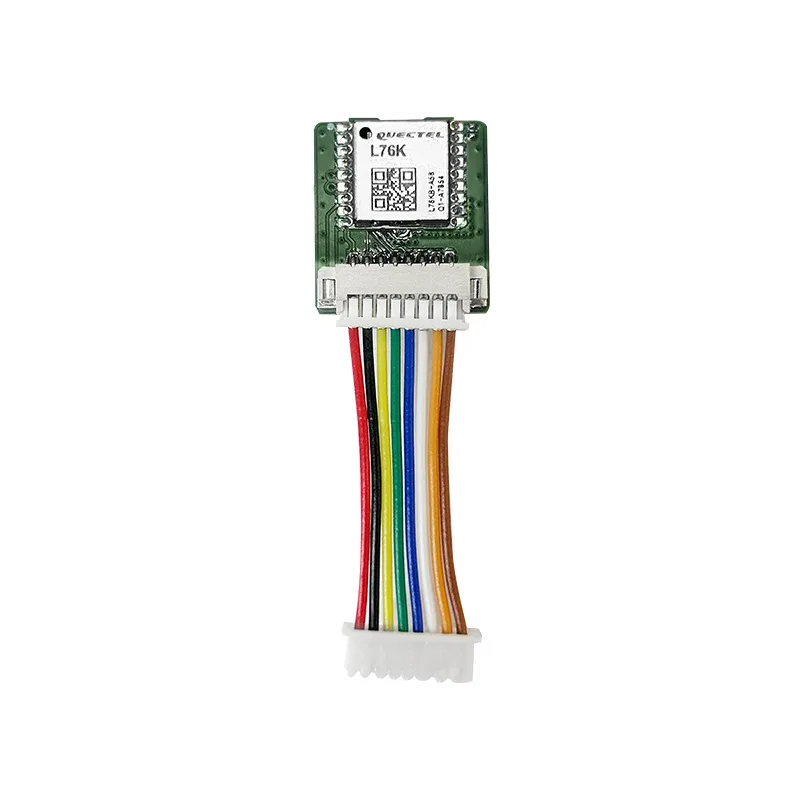

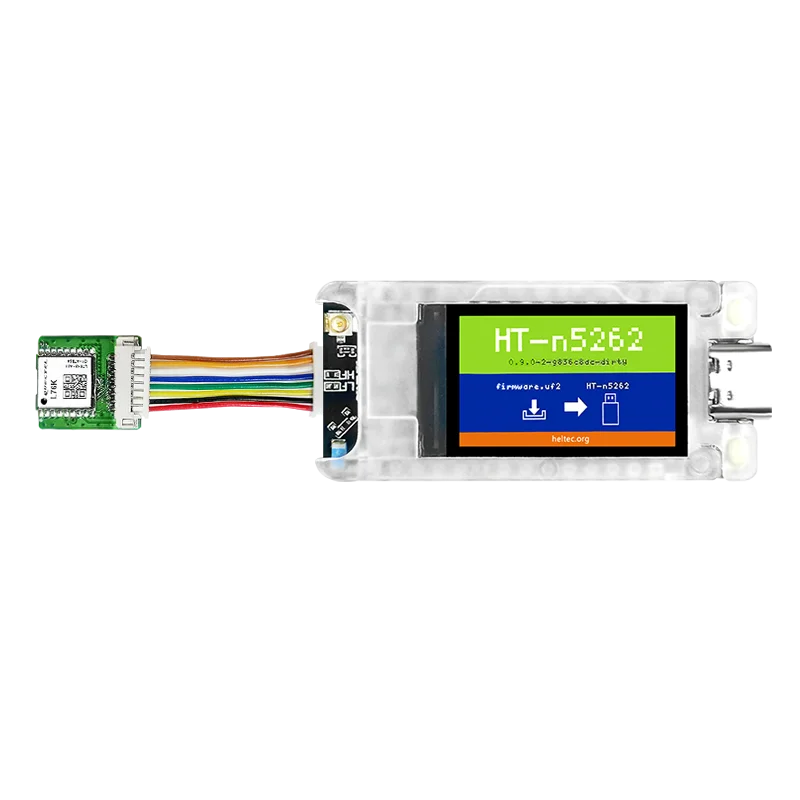

Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.
Docs & Resource
·[Resource] —https://github.com/HelTecAutomation/Heltec_nRF52
·[Attachment] —https://platform.snapemu.com/user/login
·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/MeshNode-
T114_V2.0_SCH(2).pdf
·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/Datasheet.pdf
·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/1.14inch%20LH114T-
IF03%20VER%20C.pdf
·[Resource] — https://resource.heltec.cn/download/Mesh_Node_T114

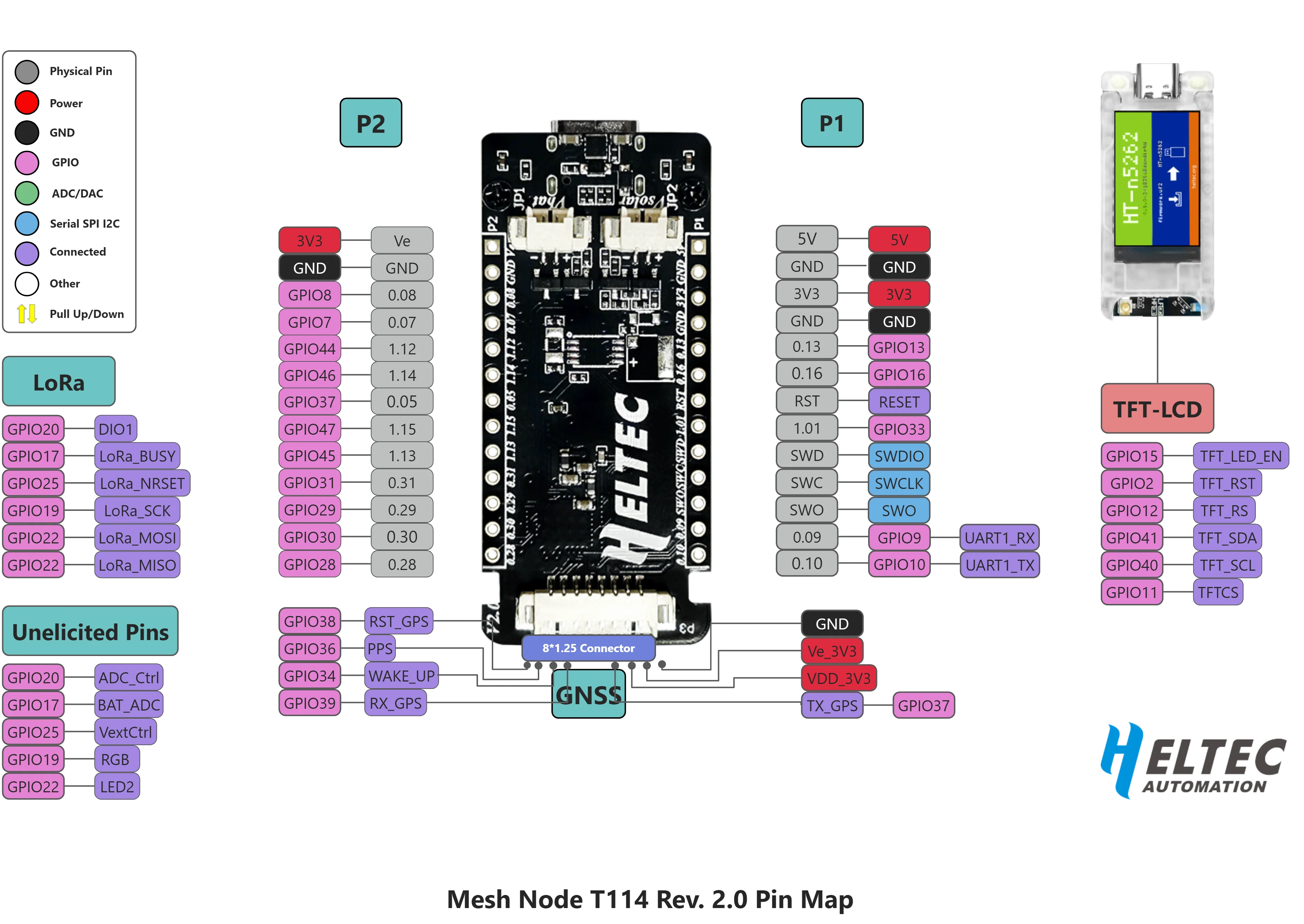

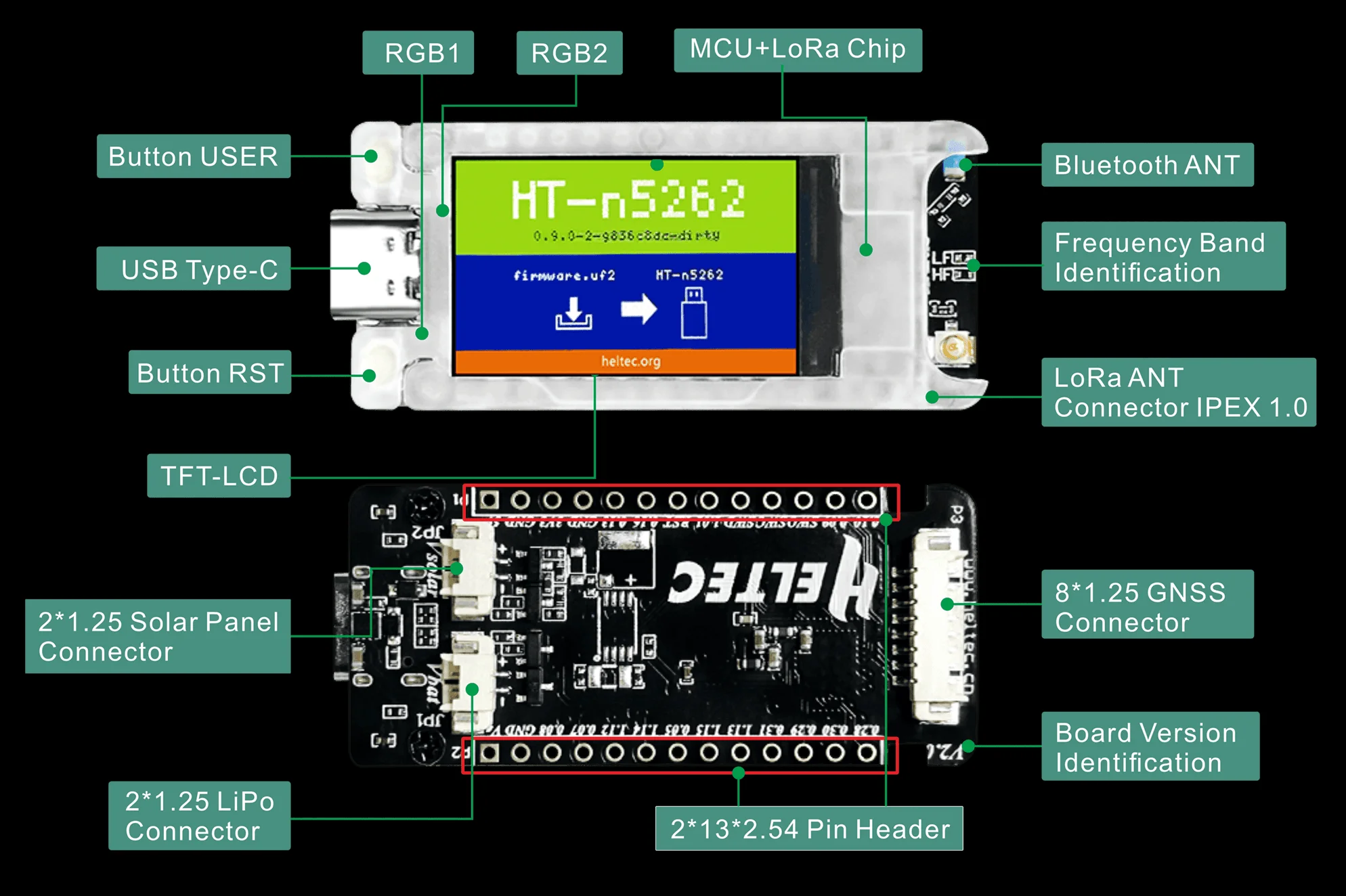

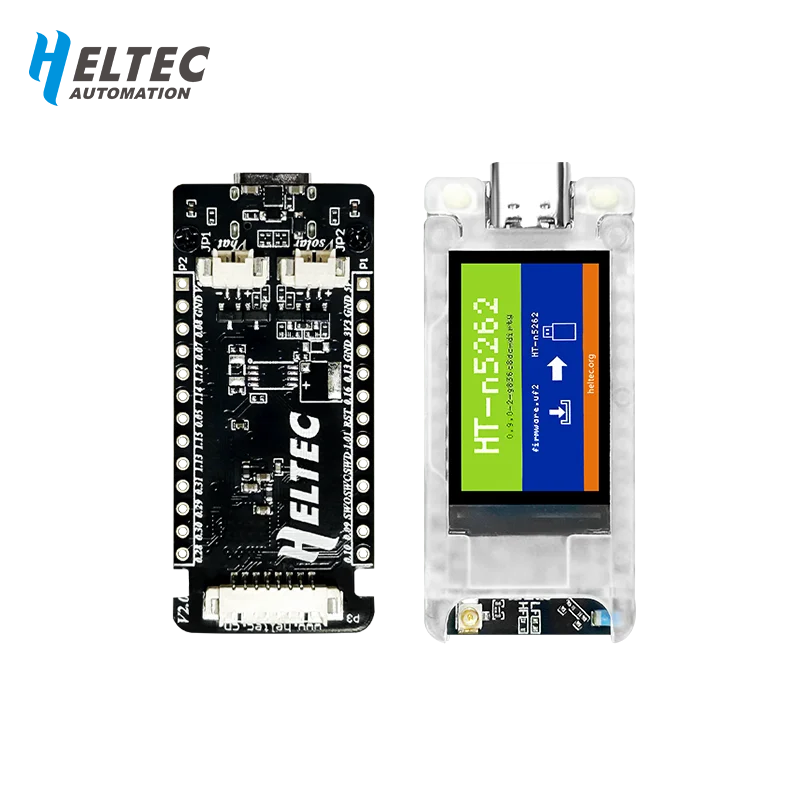

Pin Map
Dimension
Specifications
|
Parameters |
Description |
|
MCU |
nRF52840 |
|
LoRa Node Chip |
SX1262 |
|
Frequency |
470~510MHz,; |
|
Max. TX Power |
21±1dBm |
|
Max. Receiving sensitivity |
-135dBm@SF12 BW=125KHz |
|
Bluetooth |
Bluetooth LE: Bluetooth 5, Bluetooth mesh |
|
Hardware Resource |
USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc. |
|
Memory |
1M ROM |
|
Interface |
Type-C USB |
|
Battery |
3~4.2V battery power supply and charge. |
|
Operating Temperature |
-20 ~ 70 ℃ |
|
Dimensions |
50.80*22.86mm |
|
Low Power Consumption in Deep Sleep |
11uA |
|
Display |
onboard 1.14 inch TFT-LCD display |

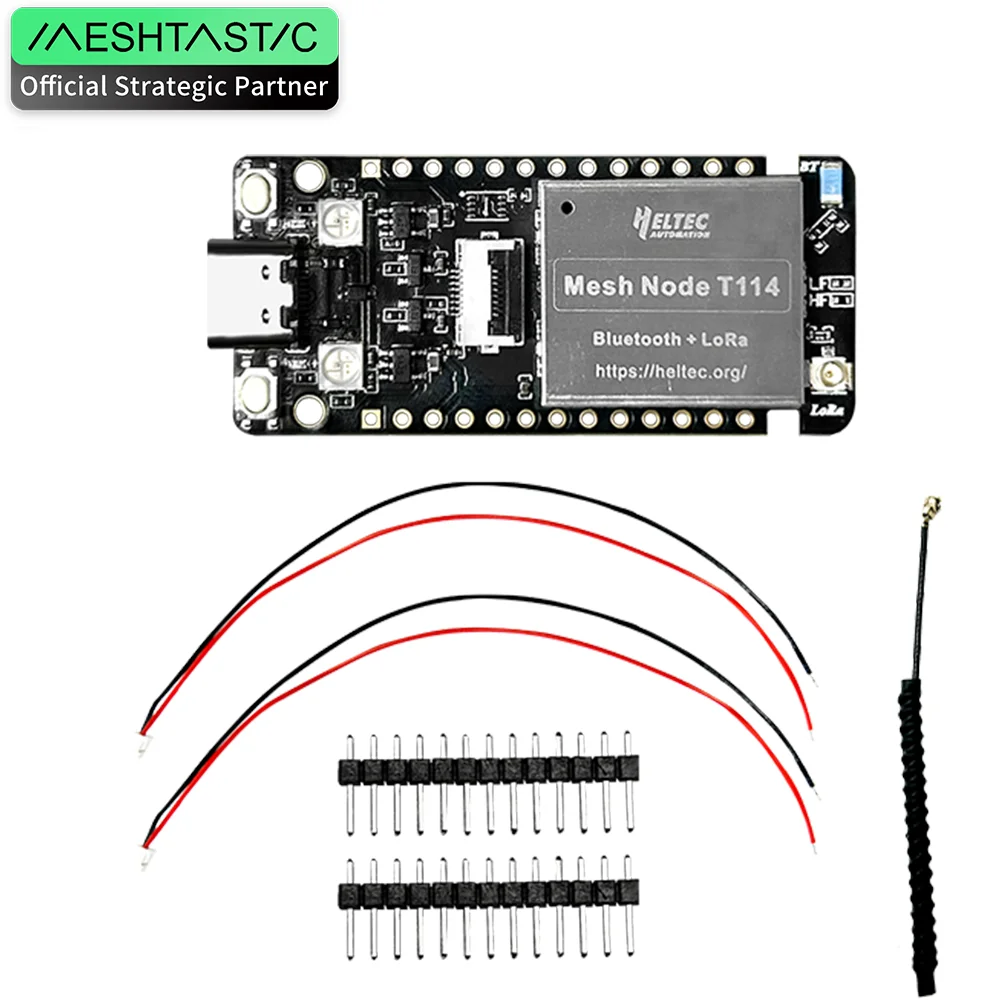

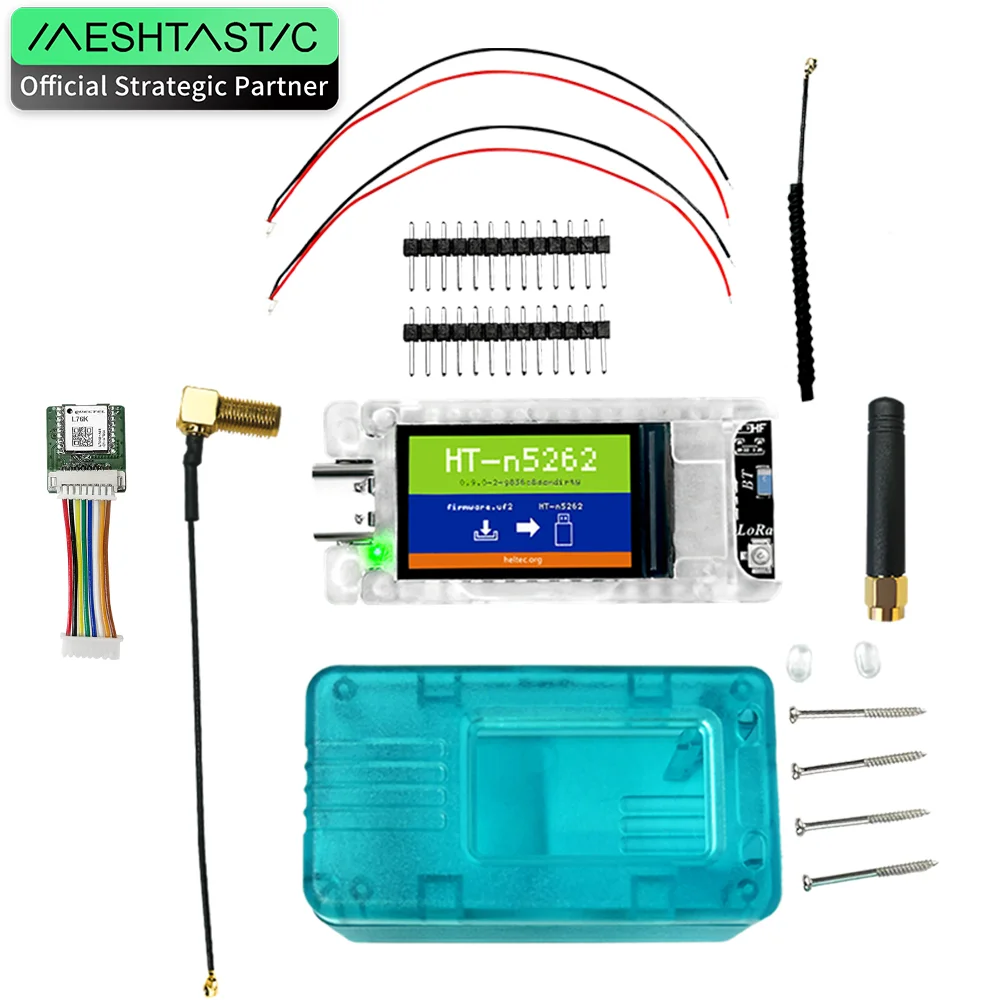

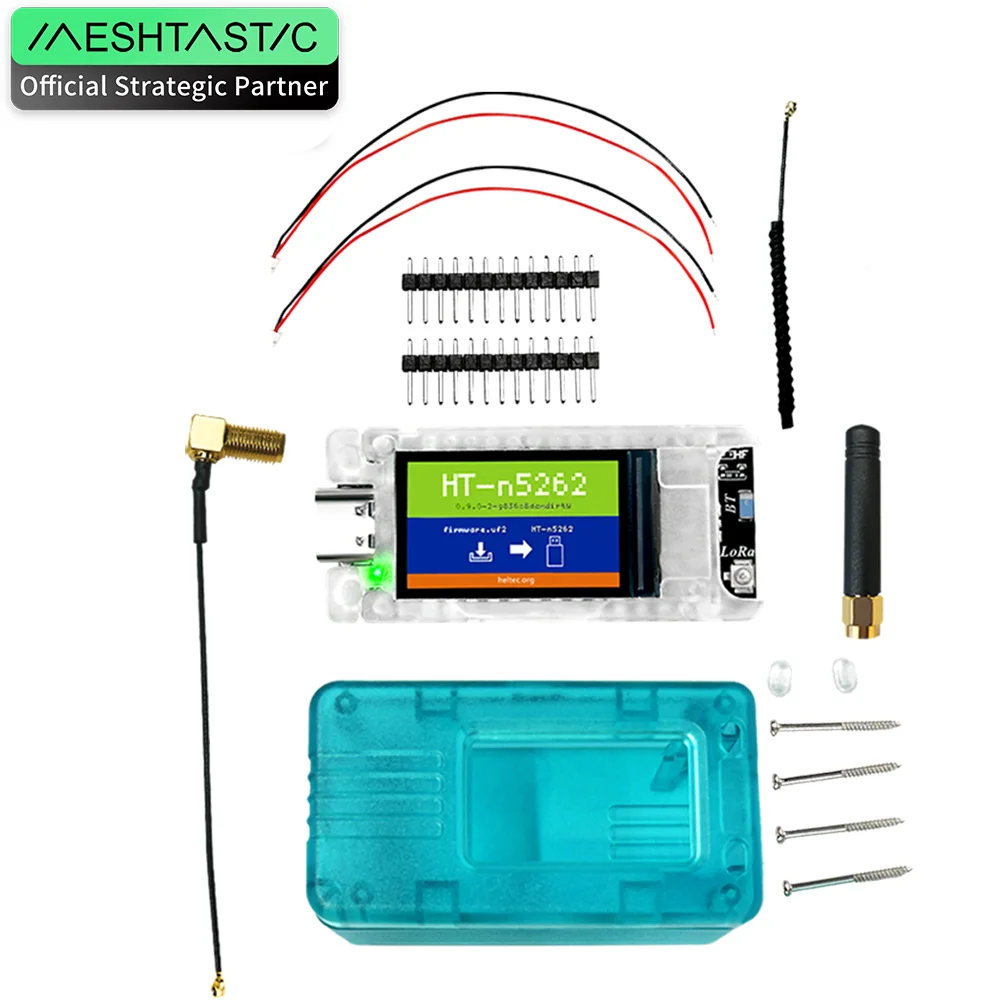

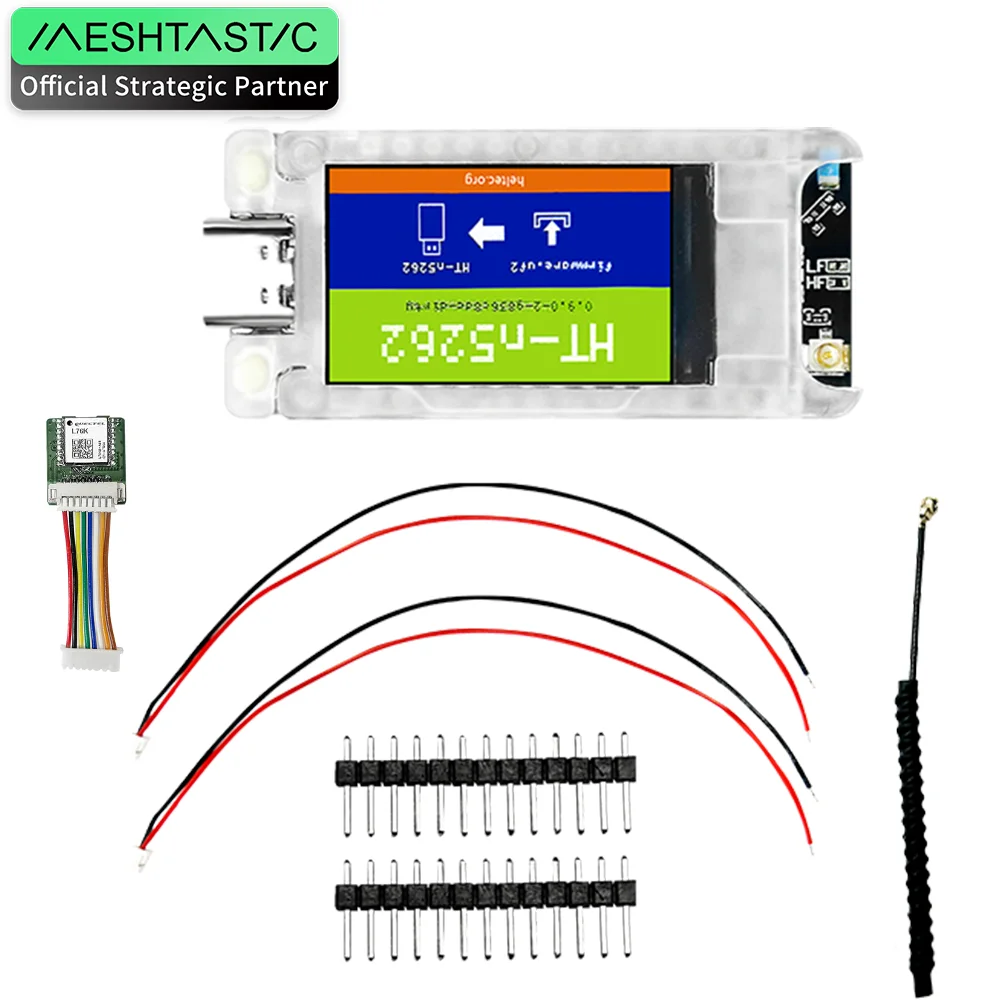

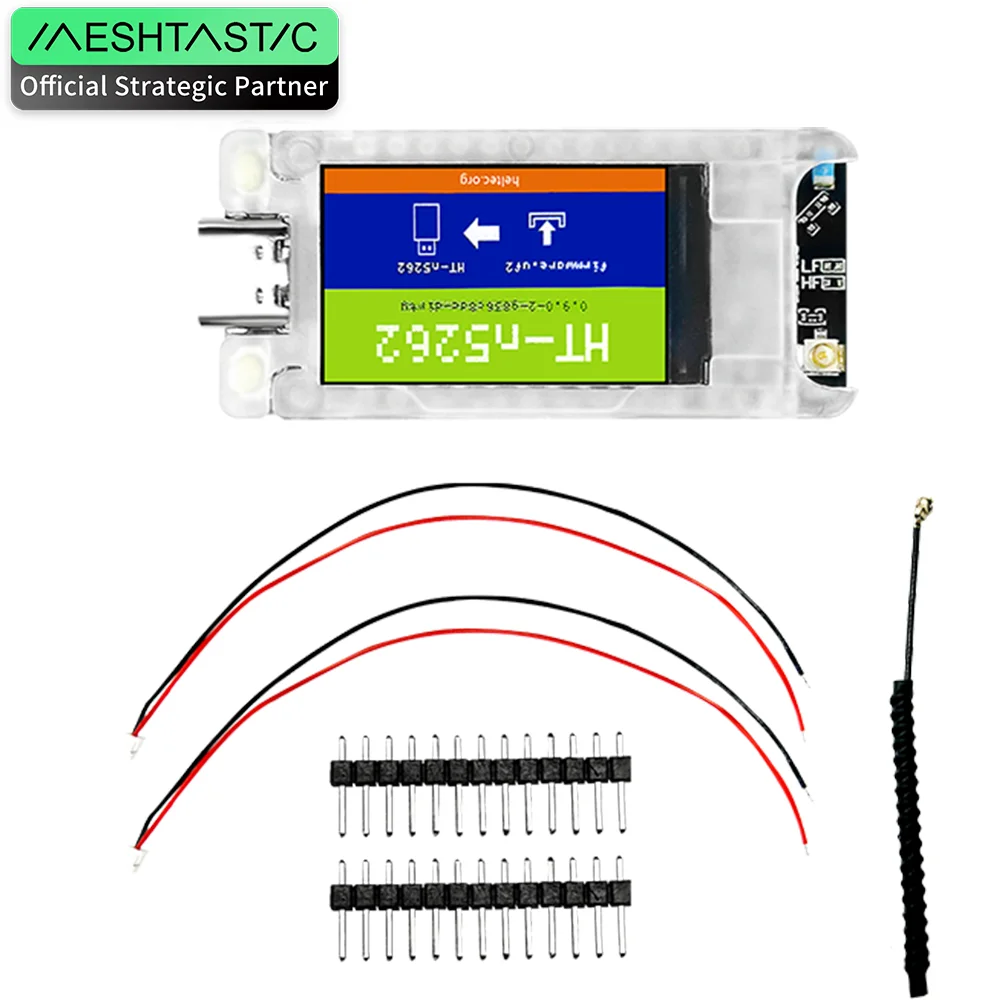

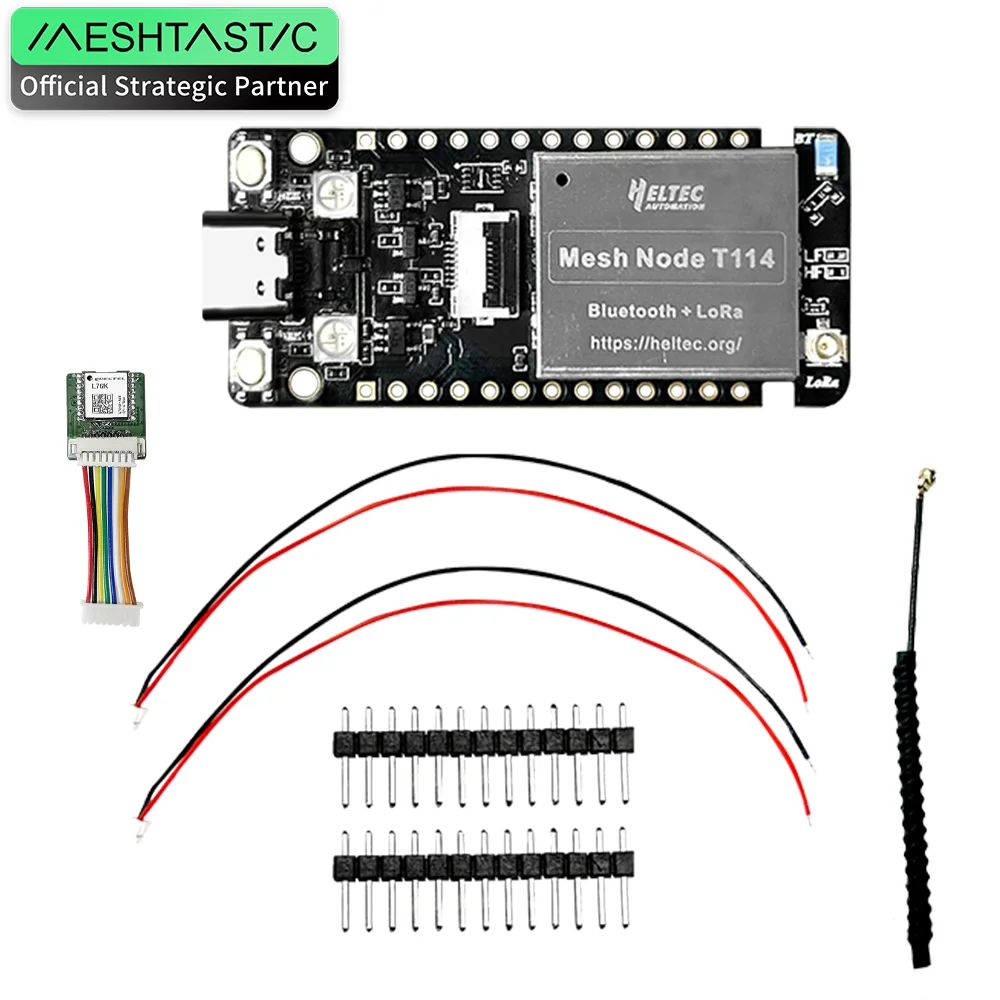

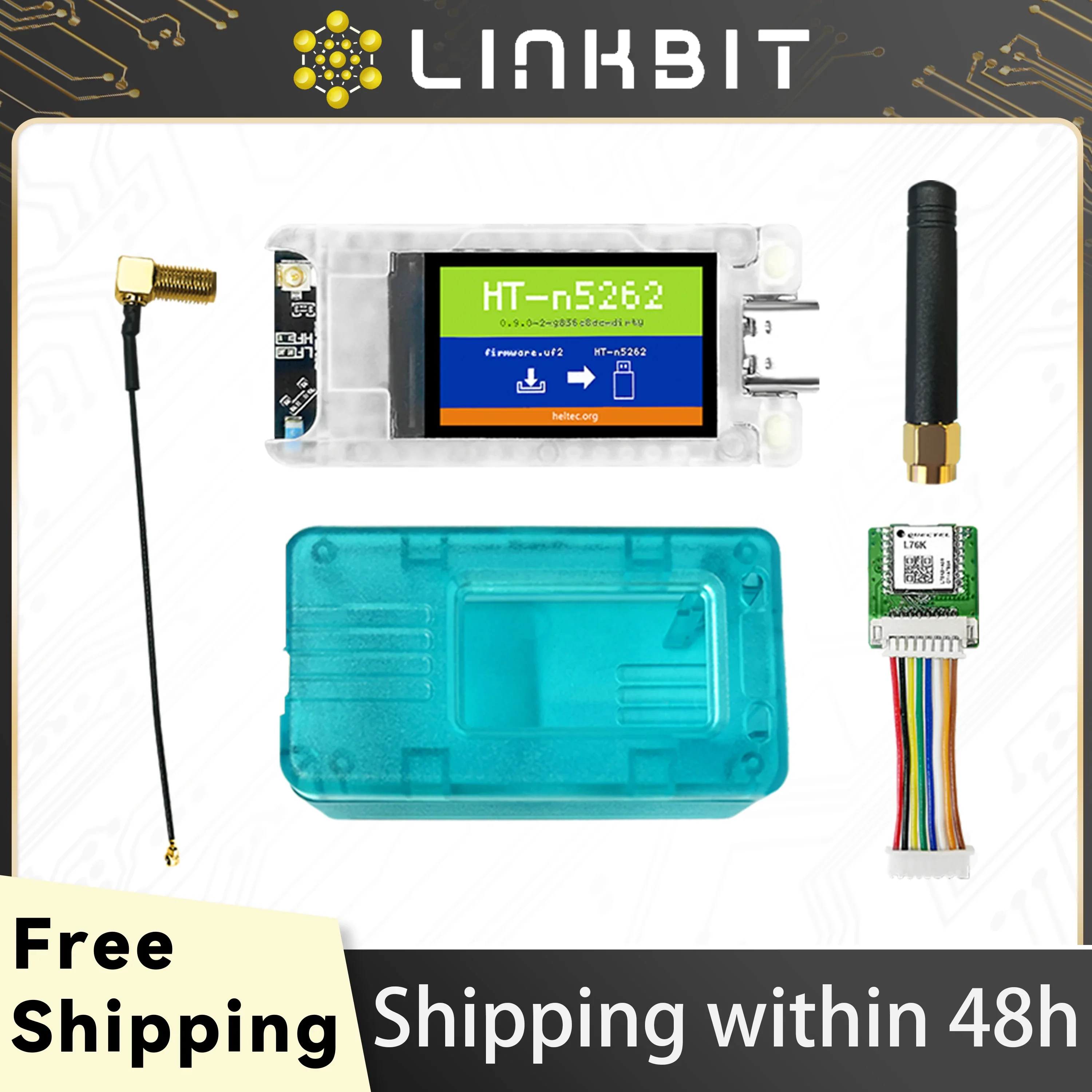

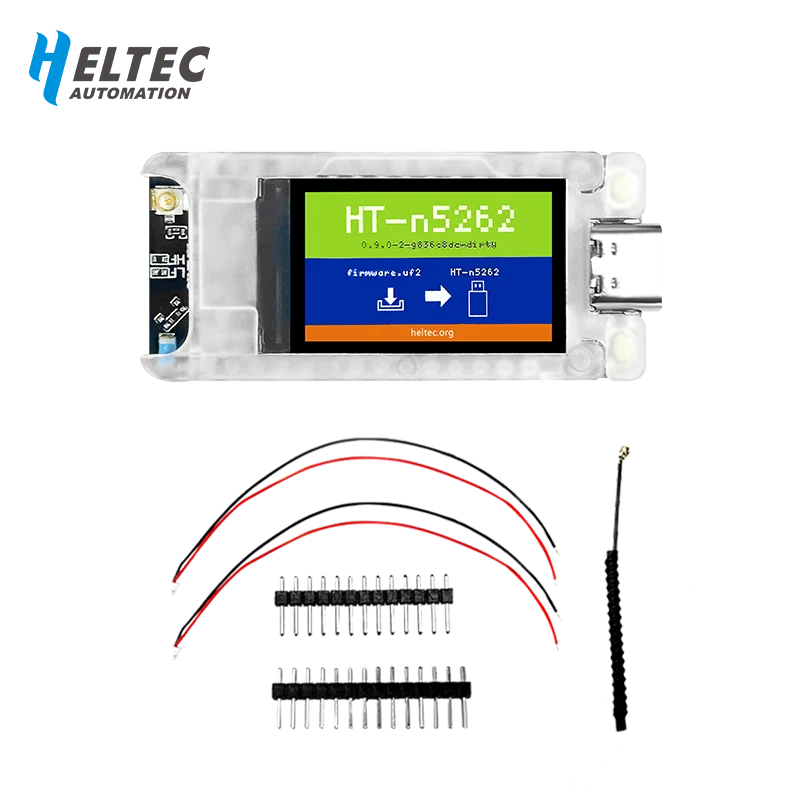

Parking List
