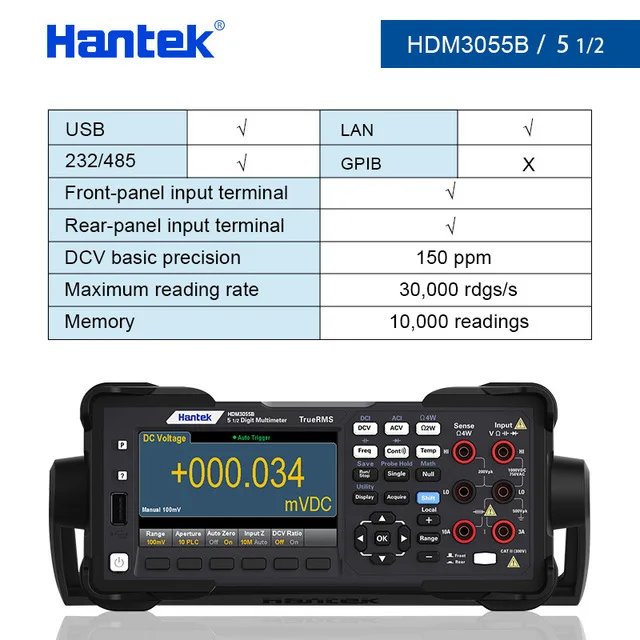

Hantek HDM3055 5 1/2 Digital Meter 30000 rdg/s Reading Rate USB/LAN/232/485 Bench True RMS High-Speed Sampling

5 1/2 reading meter with 1 μV high resolution

30 kS/s high-speed sampling frequency, which makes it easy to capture transient signals

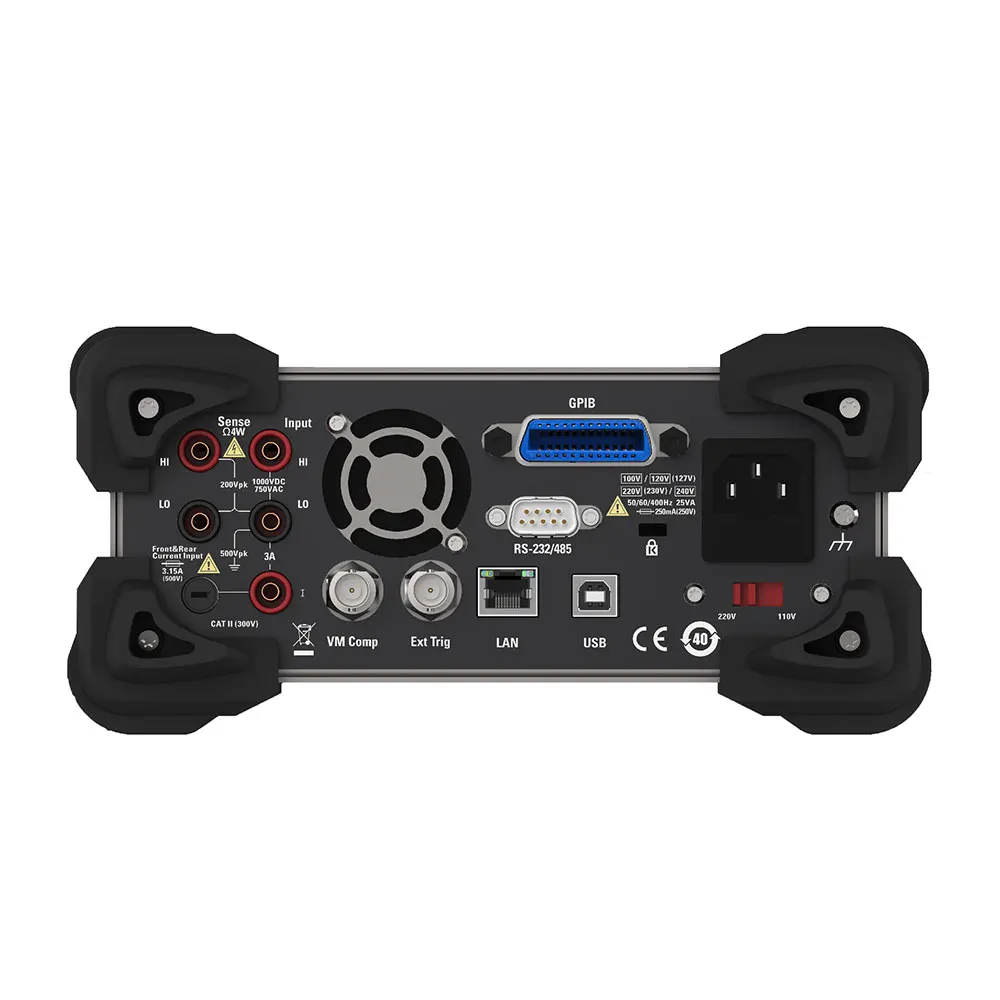

Two sets of input interfaces front and rear, which provides convenience to arrange wires

Standard with bar chart, histogram, trend chart and data statistics functions

Double display measurement function, displaying voltage and frequency synchronously

Ture RMS of AC voltage and true RMS of AC current measurements

0.1 μV resolution, simple operation, flexible parameter setting

A variety of measurement functions: DC voltage, AC voltage, DC current, AC current, 2-line resistance, 4-line resistance, capacitance, diode, connectivity, frequency, period, temperature, with the current range reaching 10 A

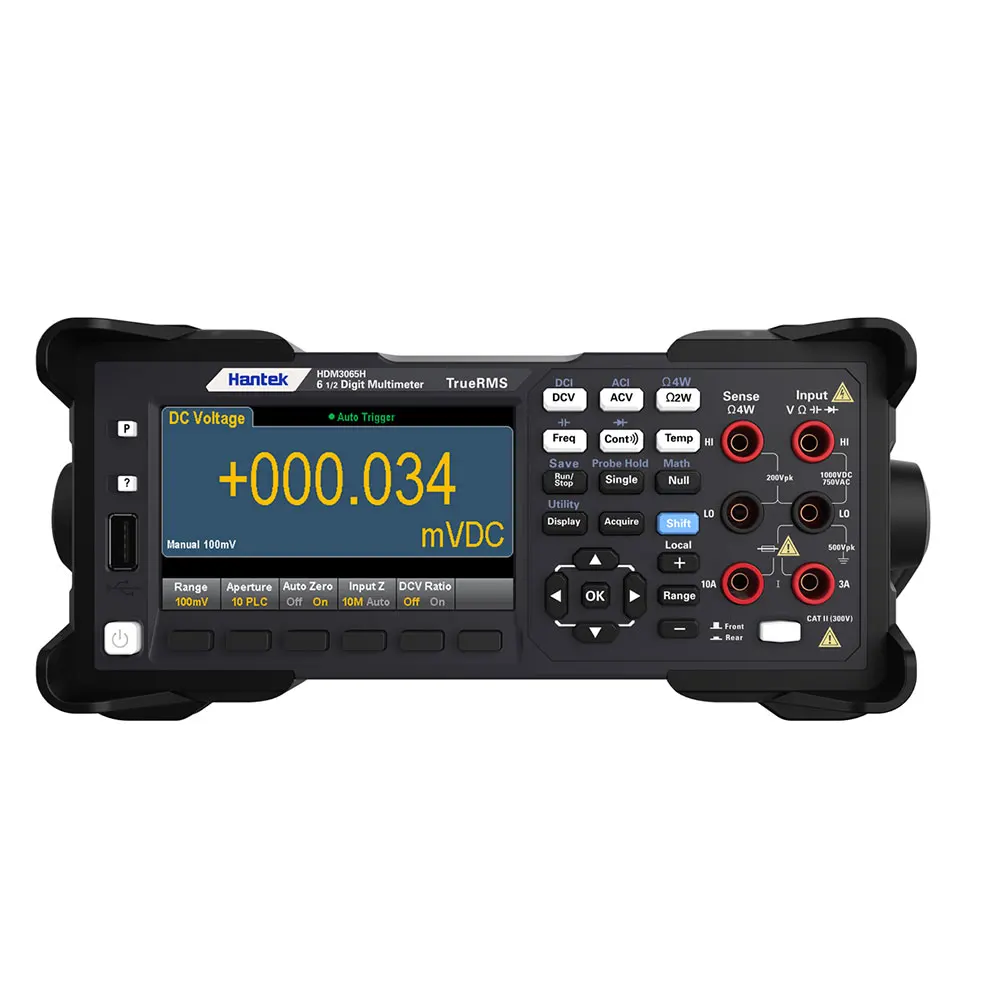

4.3-inch color LCD screen

Safety standard: CAT II 300 V

Support SCPI remote control command, compatible with the mainstream multimeter command set in the market, standard with upper computer control software

Configuration interfaces: USB Device, USB Host, LAN (HDM3055B), GPIB (HDM3055H)
