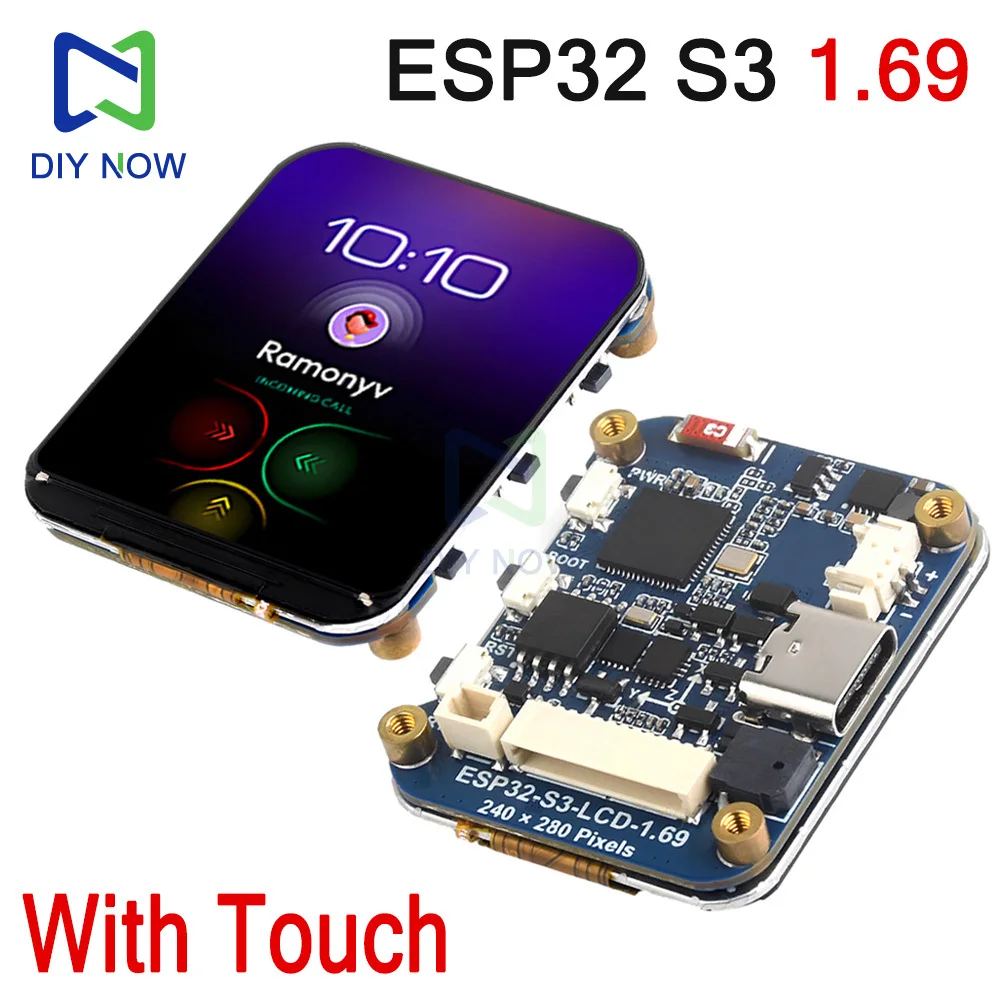

ESP32-S3 1.69-inch IPS Touch LCD Display Development Board 240×280 ST7789V2 SPI Display Module and 6-axis Sensor for Arduino
Product Introduction:

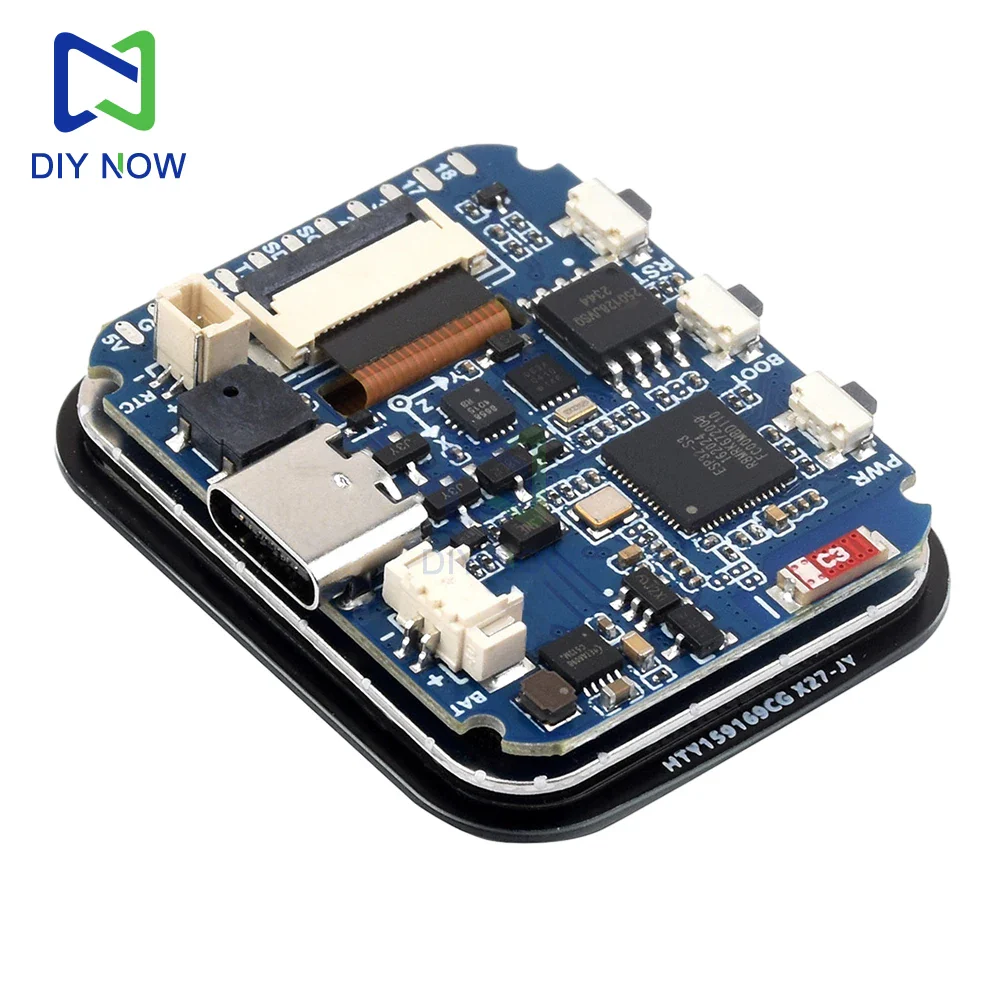

The ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance microcontroller development board. Despite its compact size, it integrates a 1.69-inch capacitive LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), a real-time clock (RTC), and other peripherals, facilitating development and product integration for developers. The ESP32-S3 currently supports two development tools and frameworks: Arduino IDE and ESP-IDF, providing flexible development options. You can choose the appropriate development tool based on your project requirements and personal preferences.
Product Features
Equipped with a high-performance Xtensa® 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with an onboard antenna
Built-in 512KB SRAM and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash

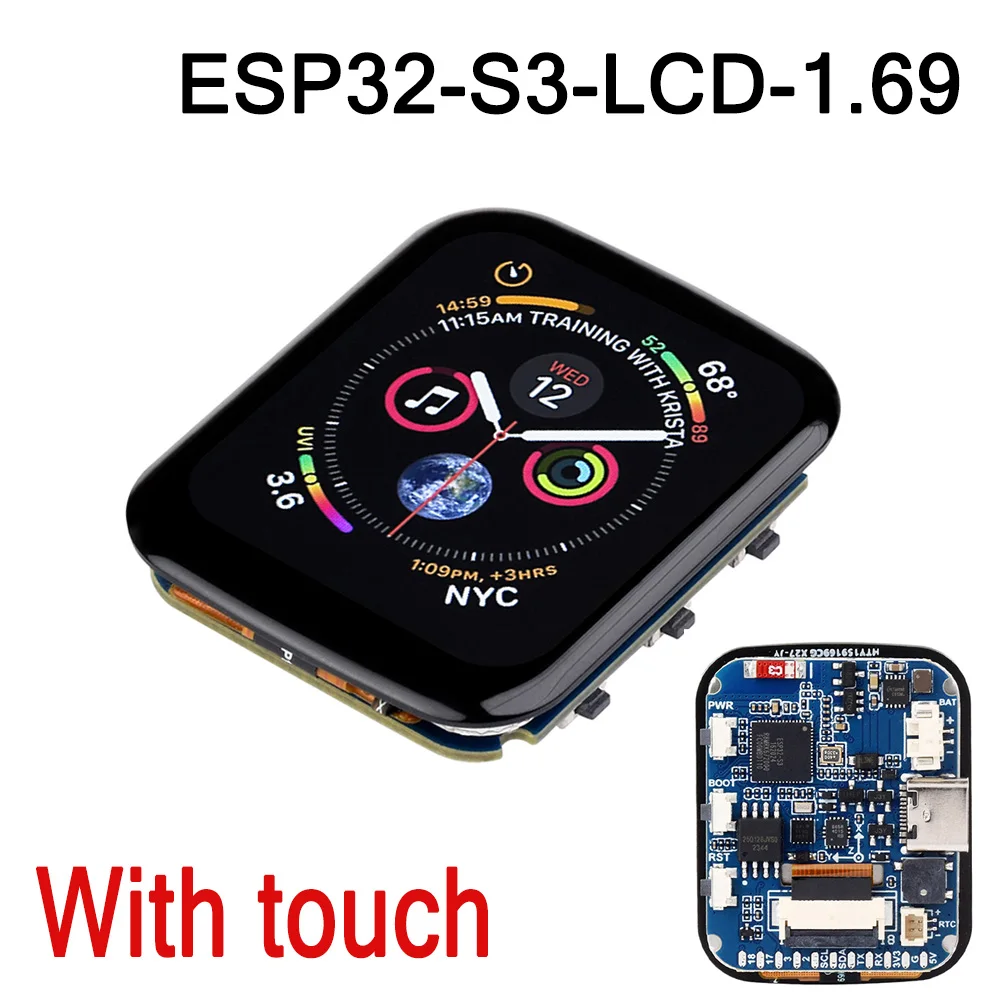

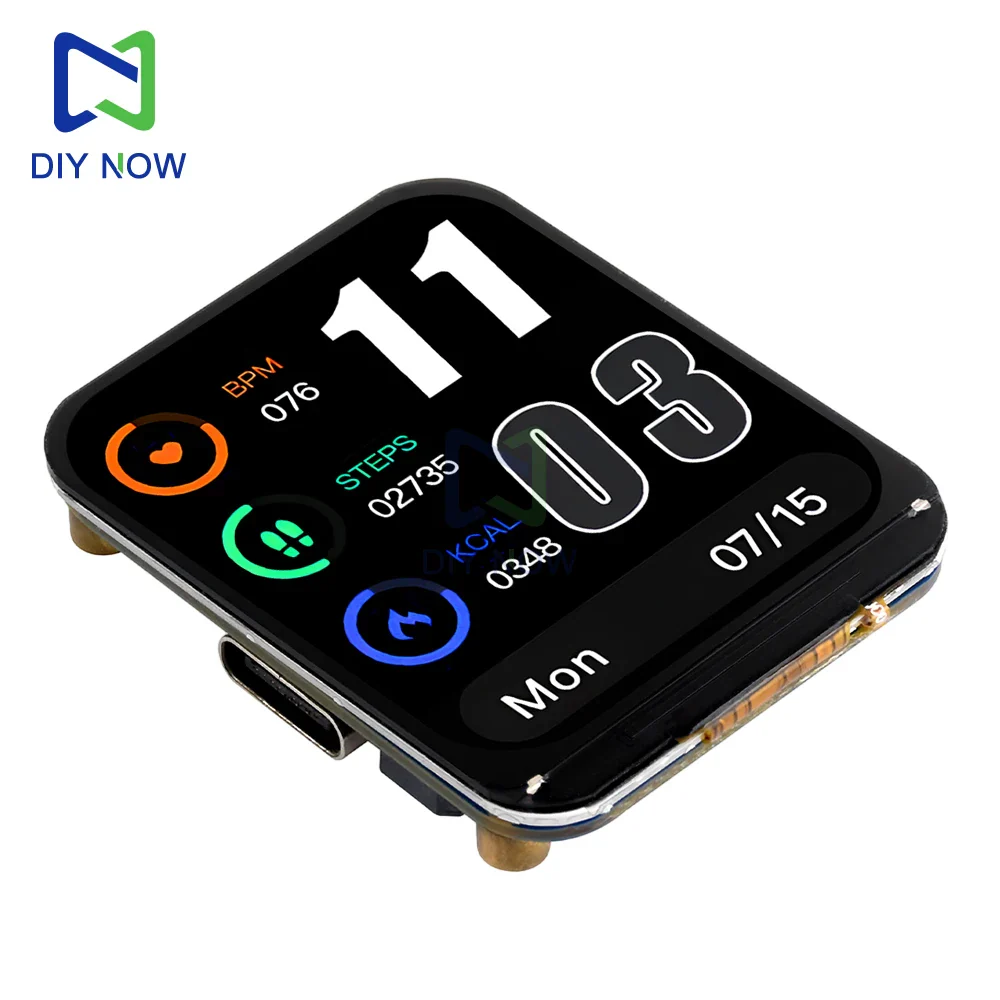

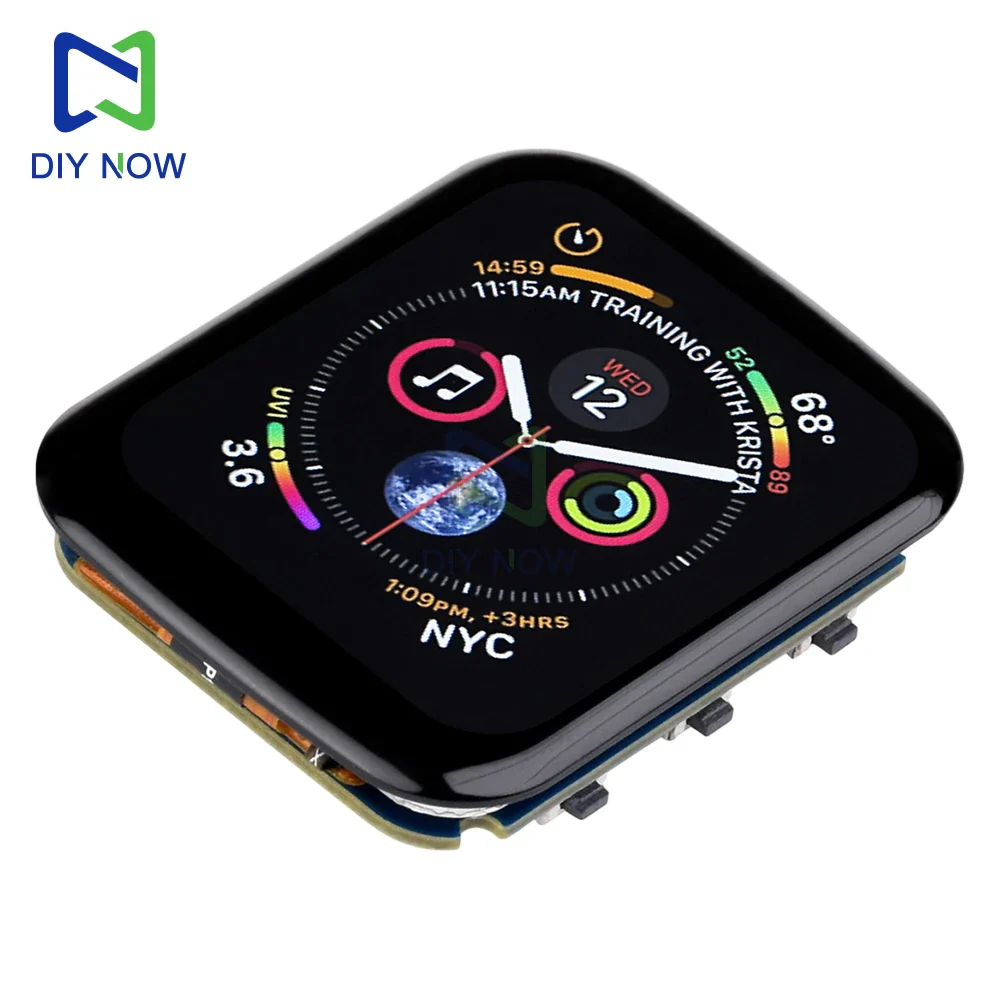

Onboard 1.69-inch capacitive LCD screen with 240×280 resolution and 262K colors, capable of clearly displaying color images
Integrated QMI8658 six-axis IMU and PCF85063 RTC, supporting motion detection and RTC functions
LCD and its Controller
The LCD uses the built-in ST7789V2 controller, a 240 × RGB × 320 pixel LCD controller. However, the LCD itself has a resolution of 240(H) × RGB × 280(V), so the internal RAM of the LCD is not fully utilized.
The LCD supports 12-bit, 16-bit, and 18-bit per pixel input color formats, namely RGB444, RGB565, and RGB666.
The LCD uses a four-wire SPI communication interface, which greatly saves GPIO pins and provides faster communication speeds.
The module resolution is 240(H) × RGB × 280(V), but because the corners are rounded (see parameters for dimensions), some parts of the input image may not be displayed.
Product List:

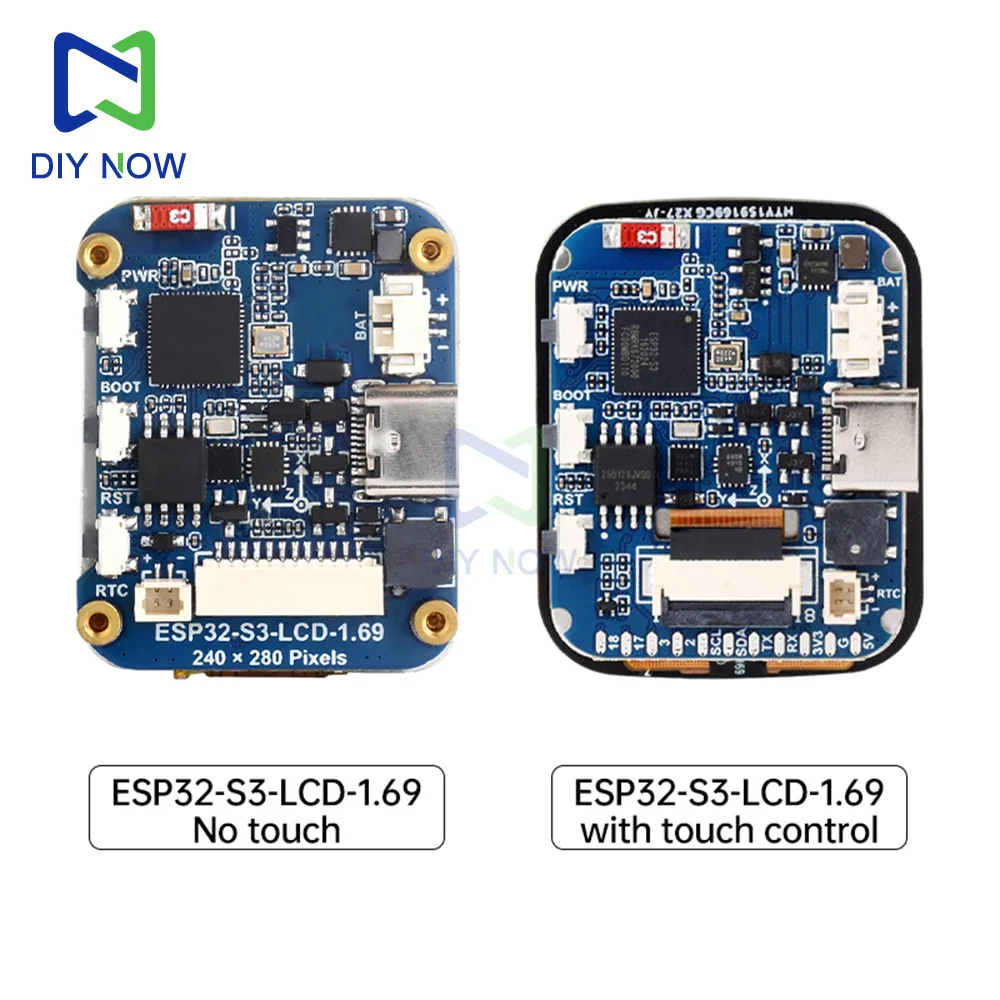

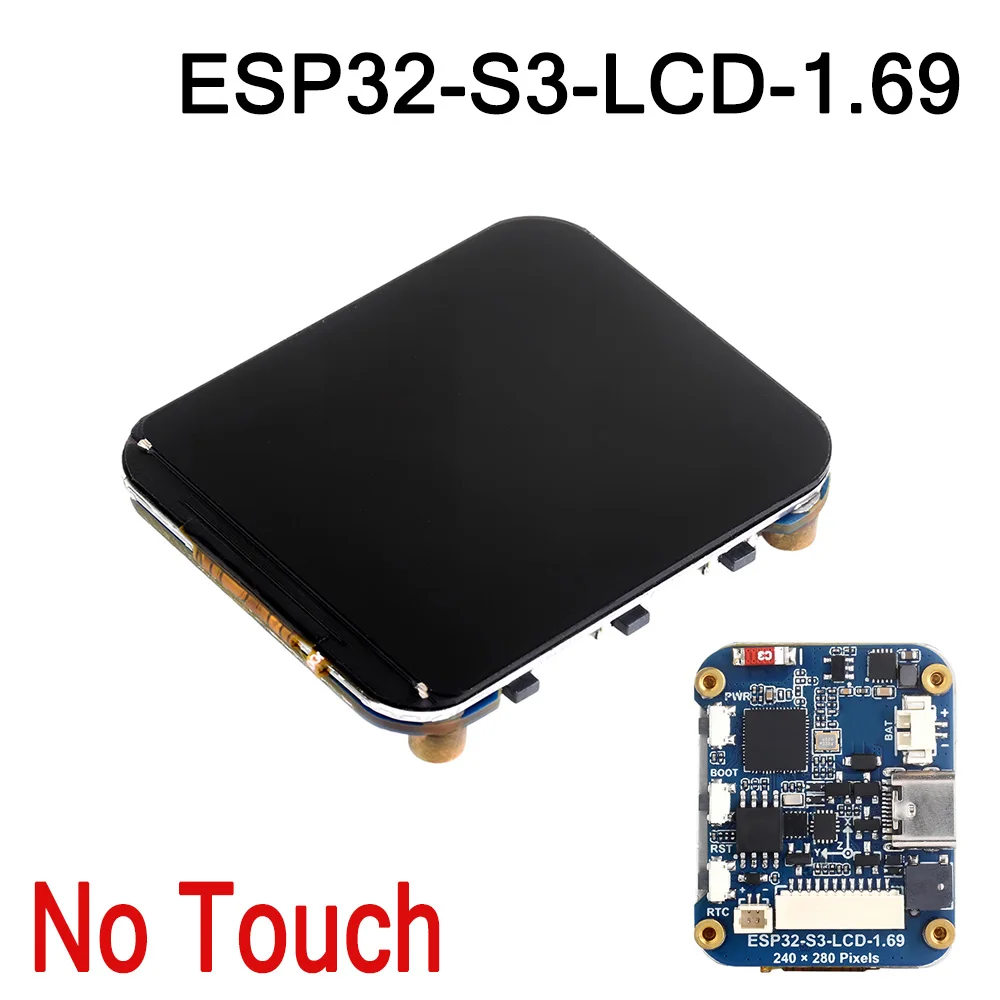

1 x Development Board （Touch and non-touch versions are available
