1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude
1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude
Specification:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Package Included:

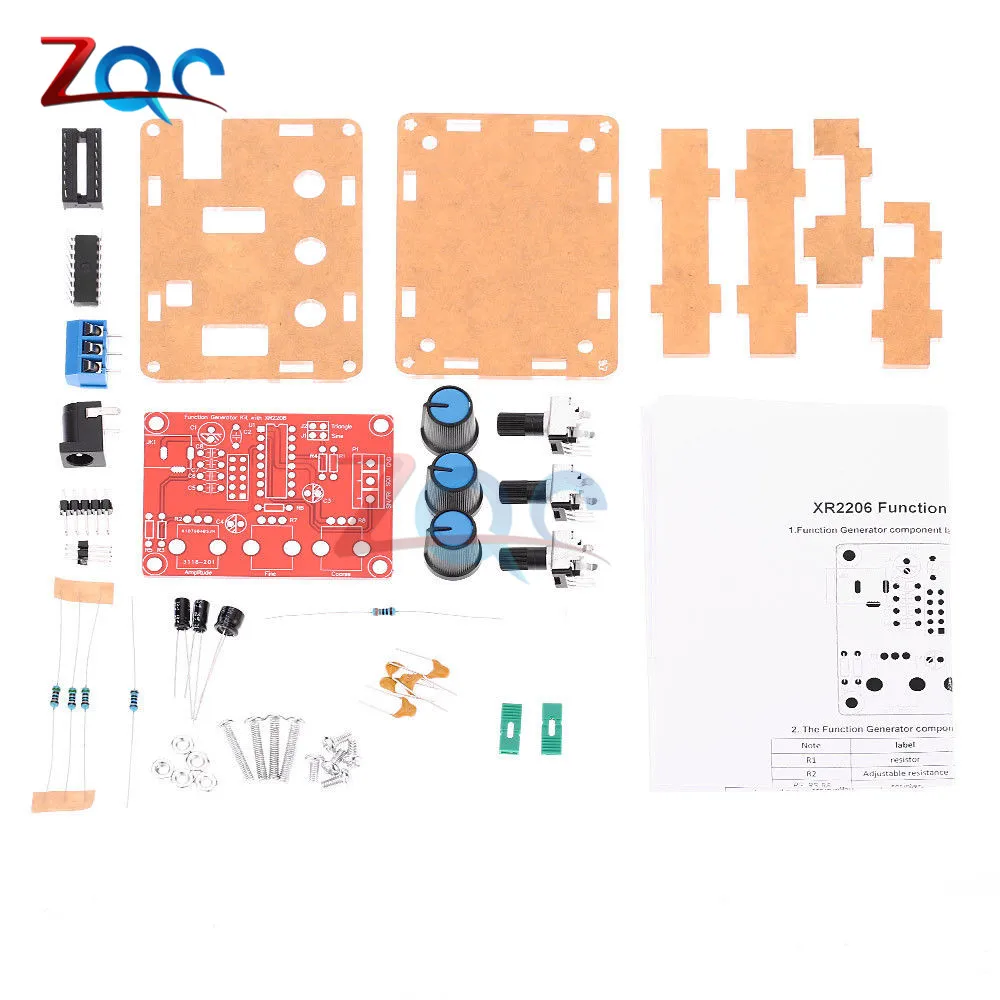

1 x Signal Generator DIY Kit Triangle Square Output 1Hz-1MHz with Case
